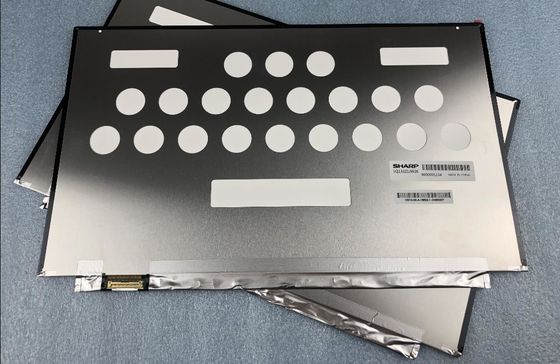

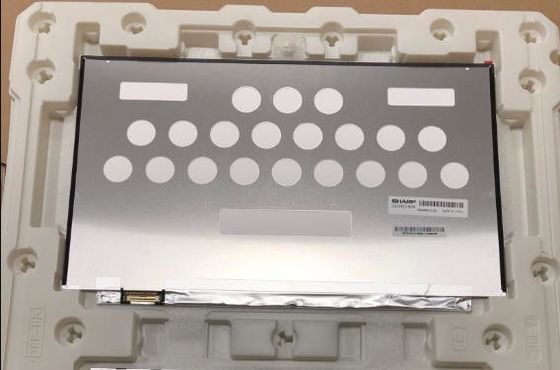

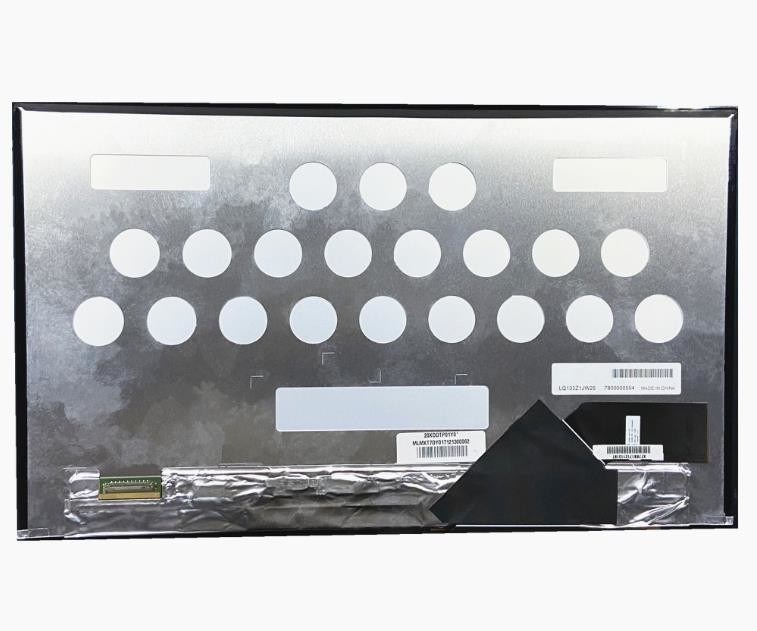

Product Details:
|
| Panel Model: | LQ133Z1JW25 | Panel Size: | 13.3" |
|---|---|---|---|
| Signal Interface: | EDP (4 Lanes) , 40 Pins Connector | Lamp Type: | 7S8P WLED , 15K Hours , With LED Driver |
| Resolution: | 3200(RGB)×1800, 276PPI | Brightness: | 400cd/m² |
| Viewing Angle: | 89/89/89/89 | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
| Highlight: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
LQ133 Series LQ133Z1JW26 LQ133Z1JW25 LQ133Z1JW23 LQ133Z1JW21 LQ133Z1JW01
| Pixel Features : | Resolution | 3200(RGB)×1800 | Dot Pitch(mm) | 0.0306×0.0918 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.0918×0.0918 (H×V) [276PPI] | |
| Mechanical Size : | Active Area(mm) | 293.76(H) × 165.24(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 299.46(H) × 178.64(V) | Depth(mm) | 2.15/4.7 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 190/210g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | VA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.53 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 455/545mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.5/1.8W (Typ./Max.) | |||||
| Signal Type : | eDP (4 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20682-040E-02 | 1 pcs | 40 pins | 0.4 mm | ||
| Backlight Features: | Shape | 8 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 7S8P | Life Time | 15K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 267.5/295mA (Typ./Max.) | ||
| Consumption | 3.21/3.54W (Typ./Max.) | |||||
LQ133Z1JW25 supports display 3200(RGB)×1800 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 276 PPI. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 299.46(W)×178.64(H)×4.7(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 190/210g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a VA, Normally Black, Transmissive LCM product, LQ133Z1JW25 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 7S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver.
