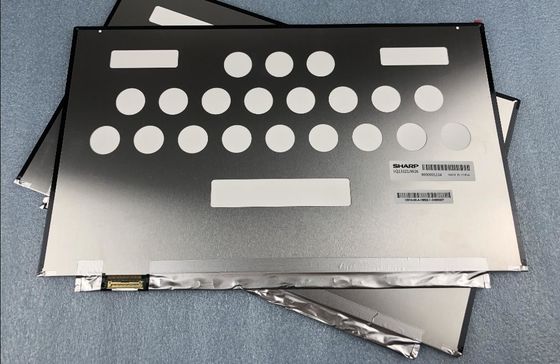

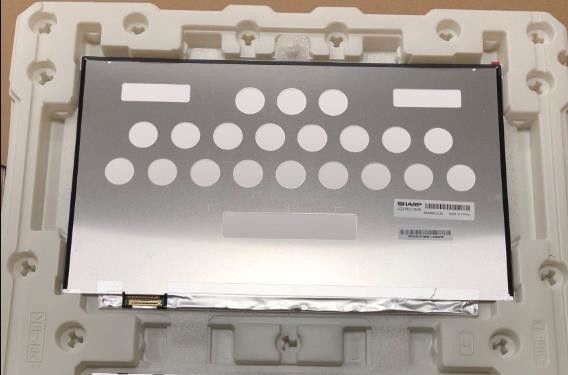

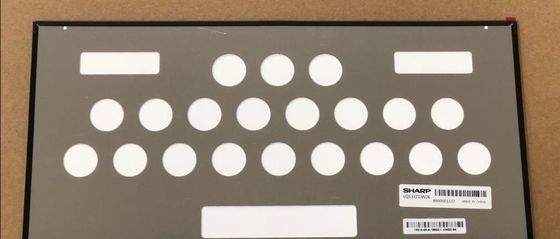

13.3" LCM 3200×1800RGB 400cd/m² LQ133Z1JW26 Sharp TFT LCD Display

13.3" LCM 3200×1800RGB 400cd/m² LQ133Z1JW26 Sharp TFT LCD Display
13.3" LCM 3200×1800RGB 400cd/m² LQ133Z1JW26 Sharp TFT LCD Display 13.3" LCM 3200×1800RGB 400cd/m² LQ133Z1JW26 Sharp TFT LCD Display 13.3" LCM 3200×1800RGB 400cd/m² LQ133Z1JW26 Sharp TFT LCD Display

Large Image :  13.3" LCM 3200×1800RGB 400cd/m² LQ133Z1JW26 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ133Z1JW26
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box 12 Kgs 544×434×210 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 500PCS
Contact Now

13.3" LCM 3200×1800RGB 400cd/m² LQ133Z1JW26 Sharp TFT LCD Display

Description
Model: LQ133Z1JW26 Pixel Format: 3200(RGB)×1800 276PPI
Diagonal Size: 13.3 Inch Luminance: 400 Cd/m² (Typ.)
Viewing Angle: 89/89/89/89 Interface Type: EDP (4 Lanes) , 40 Pins Connector
Light Source: WLED [7S8P] , 15K Hours , With LED Driver Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C
Highlight:

CCFL TFT LCD Screen

,

SVGA Sharp LCD Display

LQ133 Series LQ133Z1JW26 LQ133Z1JW25 LQ133Z1JW23 LQ133Z1JW21 LQ133Z1JW01



Sharp LQ133Z1JW26 Mechanical Details

Pixel Features :
Resolution
3200(RGB)×1800
Dot Pitch(mm)
0.0306×0.0918 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.0918×0.0918 (H×V) [276PPI]
Mechanical Size :
Active Area(mm)
293.76(H) × 165.24(V)
Bezel Area(mm)
-
Outline Dim.(mm)
299.46(H) × 185.4(V)
Depth(mm)
2.15/4.7 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Bent, T≤3.0mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
210g (Max.)
Treatment
Antiglare, Hard coating (3H)

Sharp LQ133Z1JW26 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
VA, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
100% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ133Z1JW26 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
455/545mA (Typ./Max.)
Consumption
1.5/1.8W (Typ./Max.)
Signal Type :
eDP (4 Lanes)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20682-040E-02
0.4 mm
40 pins
1 pcs






Sharp LQ133Z1JW26 Backlight Details

Backlight Features :
Type
WLED
Quantity
7S8P
Position
Edge light type
Replacement
-
Shape
8 strings
Life Time
15K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.0/12.0/15.0V (Min./Typ./Max.)
Current Supply
267.5/295mA (Typ./Max.)
Consumption
3.21/3.54W (Typ./Max.)



FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
