Product Details:
|

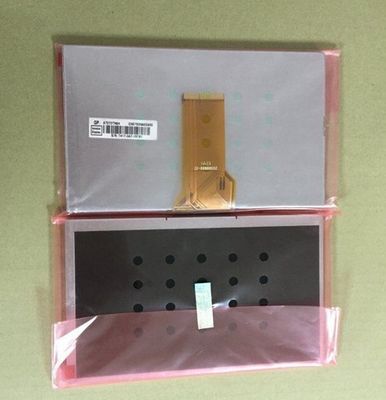

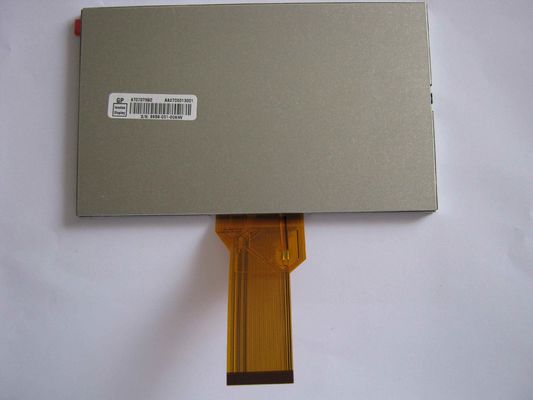

| MODEL NUMBER: | AT070TN92 V.1 TP | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0"inch | RESOLUTION: | 0(RGB)×480, WVGA, 134PPI |
| BRIGHTNESS: | 240CD/M2 | VIEWING ANGLEG: | 70/70/50/70 (Typ.)(CR≥10) |
| Lamp Type: | WLED | TEMPERATURE RANGE: | Rating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
| Basic Detail : | Manufacturer | Model Name | AT070TN92 V.1 TP | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 7.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| Basic Information : | Luminance | 240 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0642×0.1790 mm | Pixel Pitch(W×H) | 0.1926×0.1790 mm [134PPI] | |
| Physical Size : | Active Viewing | 154.08(W)×85.92(H) mm | Overall Dim. | 164.9(W)×100(H) mm |
| Bezel Opening | 156.7(W)×89.1(H) mm | Overall Depth | 4.39±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Touchscreen : | TP Controller | - | Control Signal | - |
| Touch Points | - | TP Technology | 4-wire Resistive Touch | |
| Fixation : | Without | |||
| Other Detail : | Mass | TBD | Surface | Clear |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 1.71W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Input Current | 4.0/20.0/0.2/0.2mA (Typ.)(DIDD/AIDD/IGH/IGL) | Input Voltage | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.226W (Typ.) | Signal Interface | Parallel RGB (1 ch, 6/8-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 50 pins | DRGB-50P1C8B-115A | |||
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 20K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 170/180/200mA (Min./Typ./Max.) | Input Voltage | 9.3±0.6V | ||
| Consumption | 1.674W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | No | |||||
