Product Details:
|
| Model Name: | LQ140M1JW31 | Pixel Number: | 1920(RGB)×1080 (FHD) 157PPI |
|---|---|---|---|
| Screen Size: | 14INCH | Viewing Angle: | 89/89/89/89 |
| Backlight: | WLED , 15K Hours | Touchscreen: | Without |
| Active Area(mm): | 309.312 × 173.998 (H×V) | Max. Ratings: | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| High Light: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||

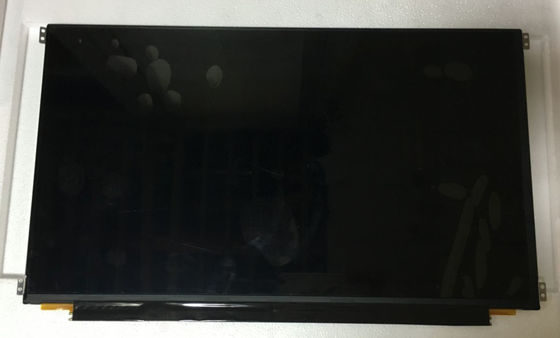

LQ140 Series LQ140Z1JW01 LQ140M1JW32 LQ140M1JW31
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0537×0.1611 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1611×0.1611 (H×V) [157PPI] | |
| Mechanical Size : | Active Area(mm) | 309.312(H) × 173.998(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Basic Information : | Luminance(cd/m²) | - | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Display Mode | Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | - | Display Colors | 16.7M (8-bit) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
