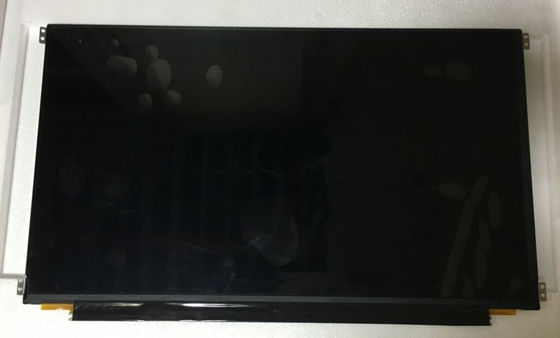

Product Details:
|
| Model Name: | LQ140Z1JW01 | Screen Size: | 14.0 Inch |
|---|---|---|---|
| Luminance: | 400cd/m² | Viewing Angle: | 80/80/80/80 |
| Pixel Number: | 3200(RGB)×1800 (Quad-HD+) 262PPI | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Signal Type: | EDP (4 Lanes) , Connector 50 Pins | Backlight: | 8S8P WLED , No Driver |
| High Light: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
LQ140 Series LQ140Z1JW01 LQ140M1JW32 LQ140M1JW31
| Screen Size : | 14.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 3200(RGB)×1800, Quad-HD+ | RGB Vertical Stripe | 0.03225×0.09675 mm | 0.09675×0.09675 mm [262PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 309.6×174.15 mm | - | 320.6×199.08 mm | 2.45±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Slim (PCBA Flat, T≤3.2mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 230±20g | - | Antiglare (Haze 42%) | ||
| Holes & Brackets : | Without | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | VA, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 99% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 8S8P | 8 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 22.4±1.6V | 19.8/20.8mA (Typ./Max.) | 3.55W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 508/880mA (Typ./Max.) | 0.26W (Typ.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (4 Lanes) | Connector | |||||

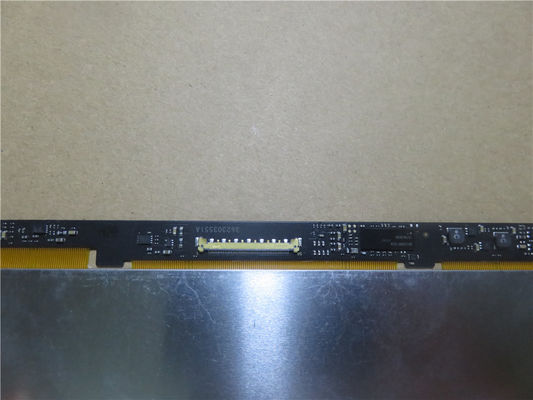

| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | HJ1S050HA1 | 1 pcs | 50 pins | 0.4 mm | ||
