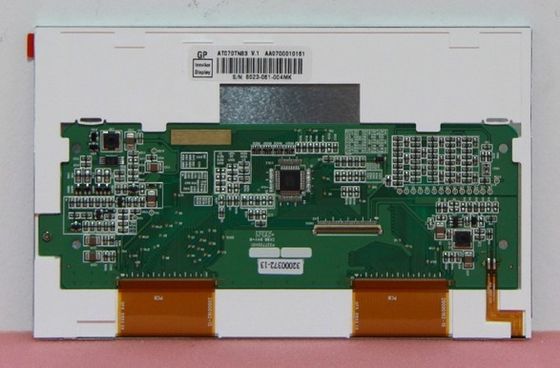

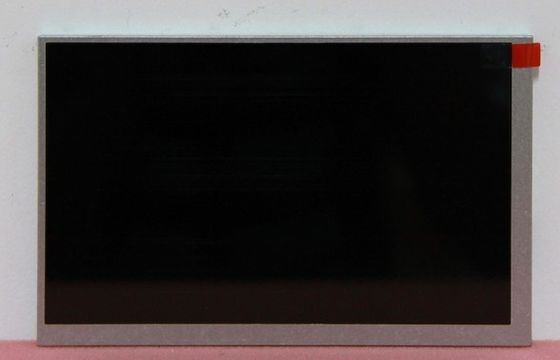

Product Details:
|
| MODEL NUMBER: | AT070TN84 TP | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480 (WVGA) 133PPI |
| BRIGHTNESS: | 360CD/M2 | VIEWING ANGLEG: | 70/70/50/70 (Typ.)(CR≥10) |
| Lamp Type: | WLED | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| Highlight: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| AT070TN84 TP | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 60 °C | -20 ~ 70 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 360 (Typ.) | 70/70/50/70 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 262K (6-bit) | X:0.310; Y:0.330 | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.1905×0.1905 [133PPI] | 0.0635×0.1905 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 152.4(H) × 91.44(V) | 155.0(H) × 94.3(V) | 165(H) × 104(V) | 6.5±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Touch Screen : | Controller & Signal type | Touch Points | Supported OS System | TP Technology |
| - | - | - | 4-wire Resistive Touch | |
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 160g (Typ.) | - | Antiglare | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 3.325W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 20K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 5.0V (Typ.) | 500/550mA (Typ./Max.) | 2.50W (Typ.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VCC) | 250/300mA (Typ./Max.)(ICC) | 825mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | TTL (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | FH33-40S-0.5SH(10) | 0.5 mm | 40 pins | 1 pcs | DRGB-40P1C6B-260B | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104(H)×6.8(D) mm, viewing area size of 155.0(W)×94.3(H) mm, with surface treament of Antiglare, net weight of 160g (Typ.). As a TN, Normally White, Transmissive LCM product, AT070TN84 TP can provides 360 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AT070TN84 TP utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)(VCC)
