Product Details:
|

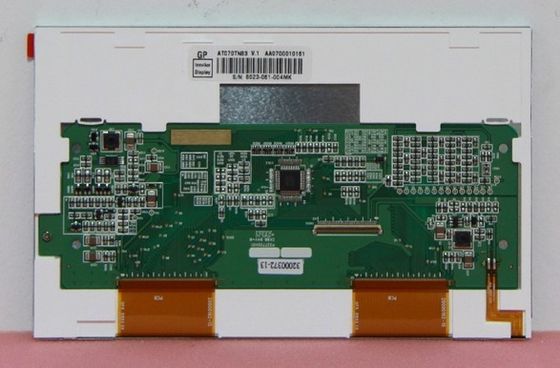

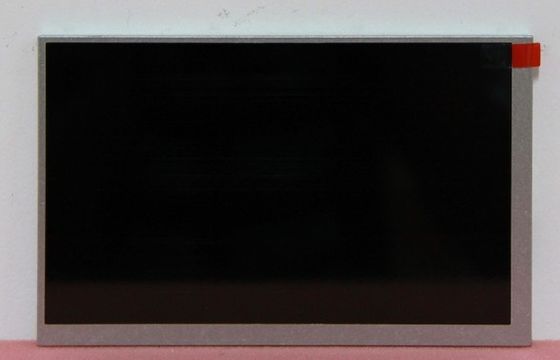

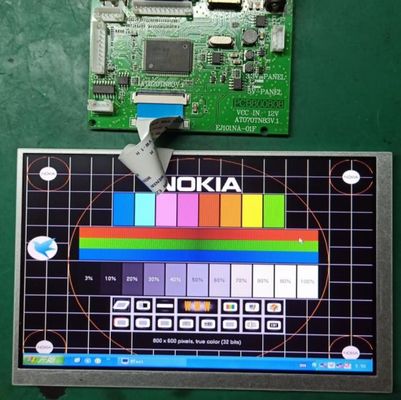

| MODEL NUMBER: | AT070TN83 V.1 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0"inch | RESOLUTION: | 800(RGB)×480 [WVGA] 133PPI |
| BRIGHTNESS: | 300CD/M2 | VIEWING ANGLEG: | 70/70/50/70 (Typ.)(CR≥10 |
| Lamp Type: | WLED | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
| Basic Info : | Panel Brand | Panel Model | AT070TN83 V.1 1 Compatible | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | AT070TN83 V1 | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0635×0.1905 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1905×0.1905 mm (H×V) [133PPI] | |
| Mechanical Size : | Display Area | 152.4×91.44 mm (H×V) | Bezel Area | 155.3×94.3 mm (H×V) |
| Outline Dim. | 165×104 mm (H×V) | Outline Depth | 5.5±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 113g (Typ.) | Surface | Antiglare |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 2.78W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 500/550mA (Typ./Max.) | ||
| Consumption | 2.50W (Typ.) | |||||
| Signal Systerm : | TTL (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.)(VCC) | Current Input | 85/120mA (Typ./Max.)(ICC) | ||
| Consumption | 281mW (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 196534-40041-3 | 0.5 mm | 40 pins | 1 pcs | DRGB-40P1C6B-260B | ||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
