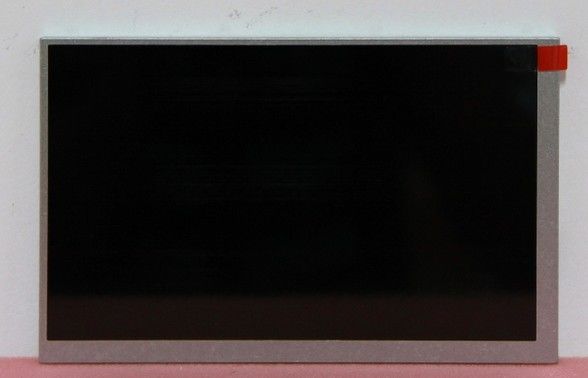

Product Details:
|
| MODEL NUMBER: | AT070TN83 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480, WVGA, 133PPI |
| BRIGHTNESS: | 300CD/M2 | Lamp Type: | WLED |
| VIEWING ANGLEG: | 70/70/50/70 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
| Screen Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 152.4×91.44 mm | 155.3×94.3 mm | 165×104 mm | 5.5±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 130g (Typ.) | - | Antiglare | ||
| Holes & Brackets : | Without | |||
| Basic Information : | Brand Name | Model Name 0 Compatible | Type | Model Alias |
|---|---|---|---|---|
| AT070TN83 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/50/70 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 262K (6-bit) | X:0.310; Y:0.330 | |
| White Uniformity : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Reverse Scan : | No |
|---|---|
| Power Consumption : | 2.72W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Min.) | 3S9P | Array | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 9.9±0.6V | 180±18mA | 1.728W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLE-2PINS-AC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VCC) | 300/350mA (Typ./Max.)(ICC) | 0.990W (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| TTL (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | FH33-40S-0.5SH(10) | 1 pcs | 40 pins | 0.5 mm | DRGB-40P1C6B-020A | |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 50 pcs / box | 9.528±5% Kgs | 530×355×255 mm (L×W×H) |
