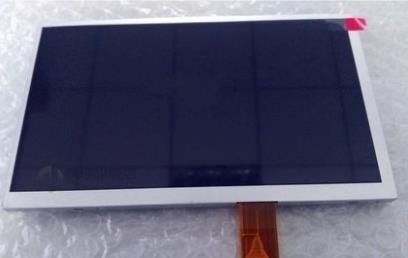

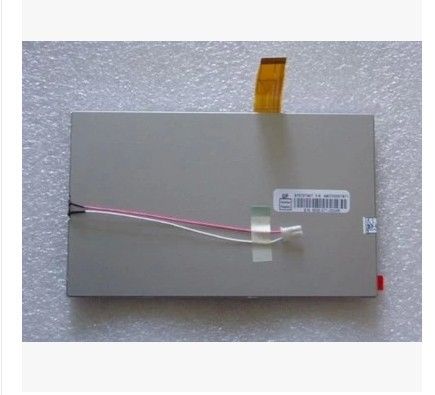

Product Details:
|
| MODEL NUMBER: | AT070TN07 V.B | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 480(RGB)×234, 76PPI |
| BRIGHTNESS: | 350CD/M2 | VIEWING ANGLEG: | 60/60/40/60 (Typ.)(CR≥10 |
| Lamp Type: | WLED | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| High Light: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| AT070TN07 V.B | a-Si TFT-LCD , LCM | AT070TN07 VB | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 85 °C | -30 ~ 85 °C |
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 480(RGB)×234 | RGB Vertical Stripe | 0.107×0.370 mm | 0.321×0.370 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 154.08×86.58 mm | 156.5×89.00 mm | 164.9×100 mm | 5.7±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 163g (Typ.) | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 60/60/40/60 (Typ.)(CR≥10) | 6 o'clock | 15/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | Full color | X:0.310; Y:0.330 | |
| Luminance Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Power Consumption : | 1.227W (Typ.) |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Need external T-CON |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| (NA/3.0)/17/0.2/0.8mA (Typ.)(ICC/IDD/IGH/IGL) | (3.3/5.0)/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) | 111mW (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | TFT Specific Analog RGB | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 26 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 3S6P | 20K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 120±12mA | 8.4/9.3/10.5V (Min./Typ./Max.) | 1.116W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 50 | 1 | 530×355×255 | 10.61 | 0.0480 | |
| Pallet | 1500 | 30 | N/A | N/A | N/A |
According to datasheet with version of Final Ver01 which was released out on 8 21 2009, AT070TN07 V.B supports display 480(RGB)×234 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.08(W)×86.58(H) mm, outline size of 164.9(W)×100(H)×6(D) mm, viewing area size of 156.5(W)×89.00(H) mm, with surface treament of Antiglare, net weight of 163g (Typ.). As a TN, Normally White, Transmissive LCM product, AT070TN07 V.B can provides 350 cd/m² display brightness 300:1 transimissive contrast ratio, 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/20 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AT070TN07 V.B utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 26 pins FPC with power supply voltage of (3.3/5.0)/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL). For more latest product detail of AT070TN07 V.B We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with Innolux or it's distributor. All specification details are inputted by Panelook engineers according to datasheet
