Product Details:
|
| Model: | LQ150U1LH22 | Diagonal Size: | 15" |
|---|---|---|---|
| Luminance: | 150cd/m² | Pixel Format: | 1600(RGB)×1200 [UXGA] 133PPI |
| Viewing Angle: | 45/45/10/30 | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
| Interface Type: | LVDS (2 Ch, 6-bit) , 30 Pins Connector | Light Source: | CCFL [1 Pcs] , 10K Hours , With Inverter |
| Highlight: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
LQ150 Series LQ150U1LW22N LQ150U1LH22
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 150 (Typ.) | 45/45/10/30 (Min.)(CR≥10) | 15/30 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| White Variation : | 1.45 (Max.)(5 points) | ||
| Panel Size : | 15.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1600(RGB)×1200 [UXGA] | RGB Vertical Stripe | 0.1900×0.1900 [133PPI] | 0.0633×0.1900 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 304(H) × 228(V) | 307.5(H) × 231.5(V) | 317.3(H) × 242(V) | 7.0 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | Wedge (PCBA Bent, T≥5.2mm) | |
| Mounting : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 690±10g | - | Antiglare (Haze 25%), Hard coating (2H), Antireflection | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | Straight | 10K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With Inverter | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| molex | 52207-1690 | 1.0 mm | 16 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 9.0/21.0V (Min./Max.) | - | - | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 660mA (Typ.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (2 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-XB30S-HF10 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C6B-020B | |

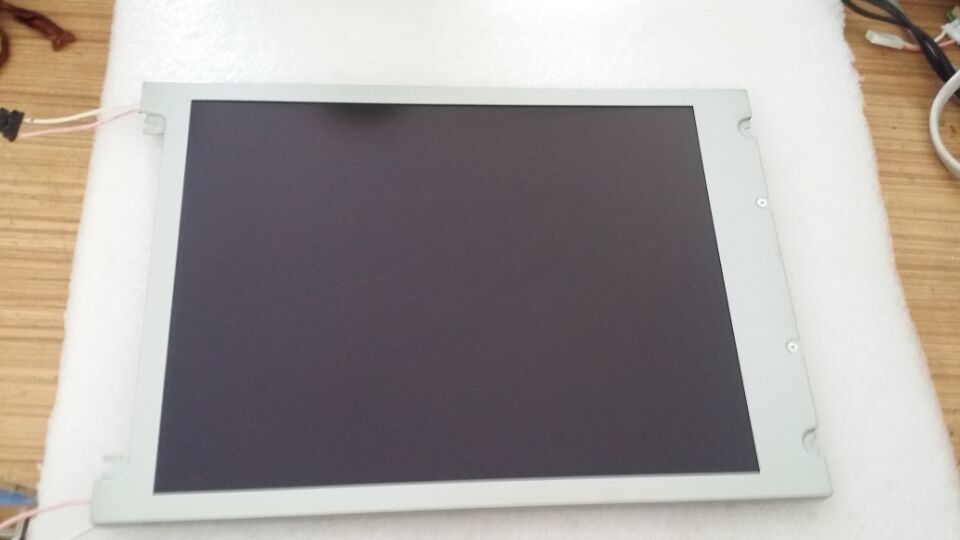

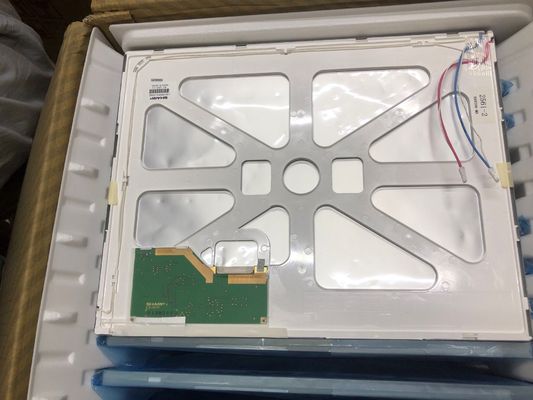

LQ150U1LH22 supports display 1600(RGB)×1200 (UXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304(W)×228(H) mm, outline size of 317.3(W)×242(H)×7(D) mm, viewing area size of 307.5(W)×231.5(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (2H), Antireflection, net weight of 690±10g, shape stype of Wedge (PCBA Bent, T≥5.2mm). As a TN, Normally White, Transmissive LCM product, LQ150U1LH22 can provides 150 cd/m² display brightness 300:1 transimissive contrast ratio, 45/45/10/30 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With Inverter.
