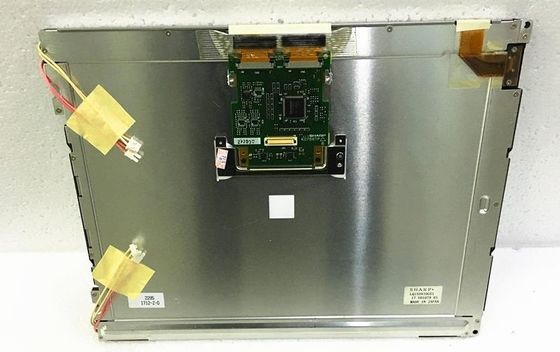

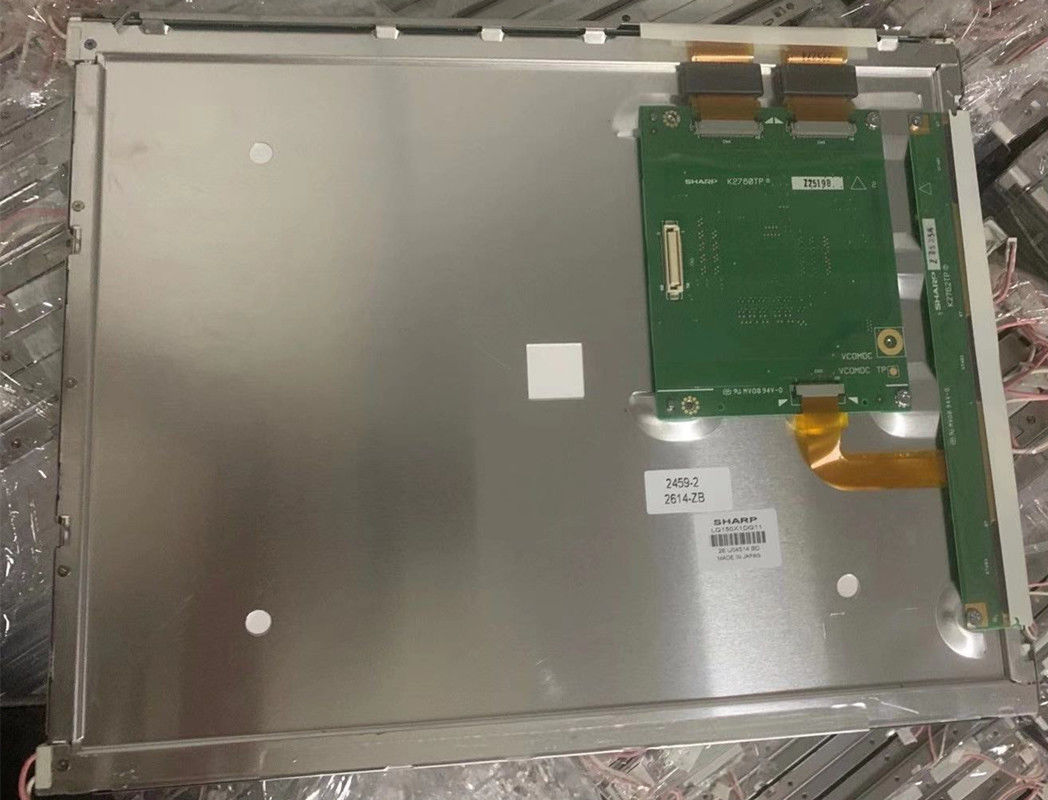

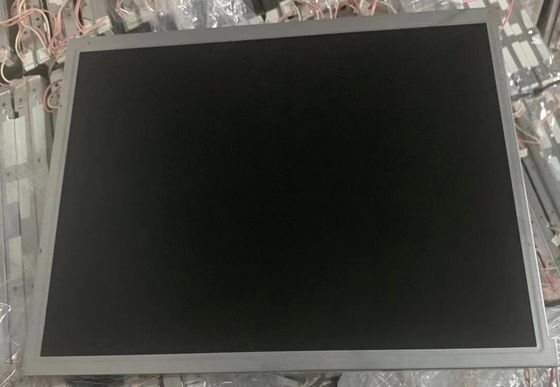

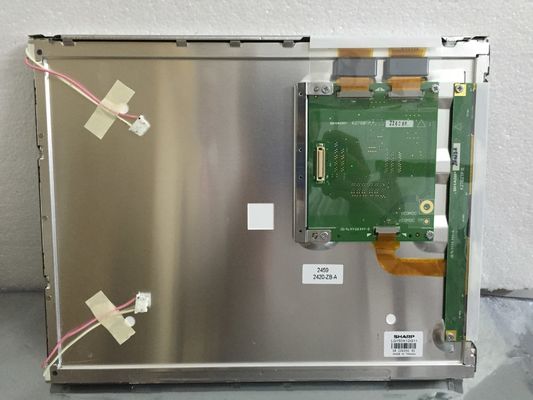

Product Details:
|
| Panel Model: | LQ150X1DG51 | Brightness: | 220cd/m² |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Panel Size: | 15INCH |
| Viewing Angle: | 70/70/60/60 | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
| Lamp Type: | 4 Pcs CCFL , 50K Hours , Without Driver | Input Voltage: | 5.0V (Typ.)(VCC) |
| Highlight: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] | |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.7(H) × 231.7(V) |
| Outline Dim.(mm) | 340(H) × 264(V) | Depth(mm) | 15.0 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Spec : | Weight | 1.35Kgs (Max.) | Treatment | Antiglare (Haze 28%), Hard coating (2H) |
| Basic Information : | Luminance(cd/m²) | 220 (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 10/35 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.35 (Max.)(5 points) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.)(VCC) | Current Supply | 360mA (Typ.)(ICC) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (2 ch, 6-bit) | Signal Voltage | GND≤VIL≤0.6V; 2.6V≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | FX8-60S-SV | 1 pcs | 60 pins | 0.6 mm | DRGB-60P2C6B-050A | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 4 pcs | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 630V (Typ.) | Current Supply | 3.5/6.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 20/60/70KHz (Min./Typ./Max.) | Startup Voltage | 800/1420V (Max.)(Ta=+25/0℃) | |||
| Consumption | 15.2W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 2 pcs | 2 pins | 3.5 mm | BLL-2PINS-HH | |
| JST | BHR-02VS-1 | 2 pcs | 2 pins | 4.0 mm | BLL-2PINS-LL | |
| Backlight Driver : | No | |||||
