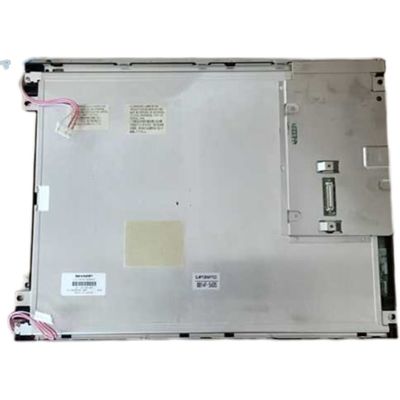

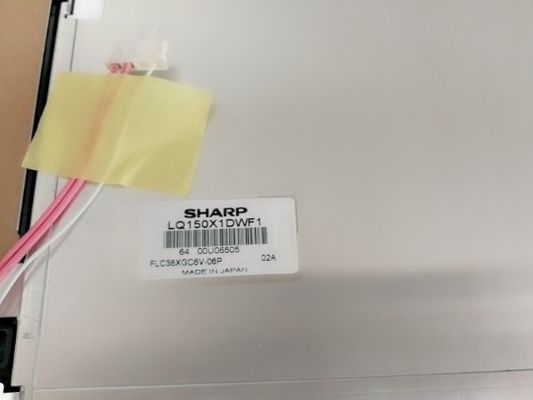

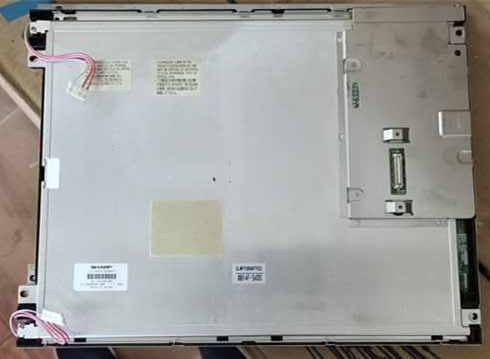

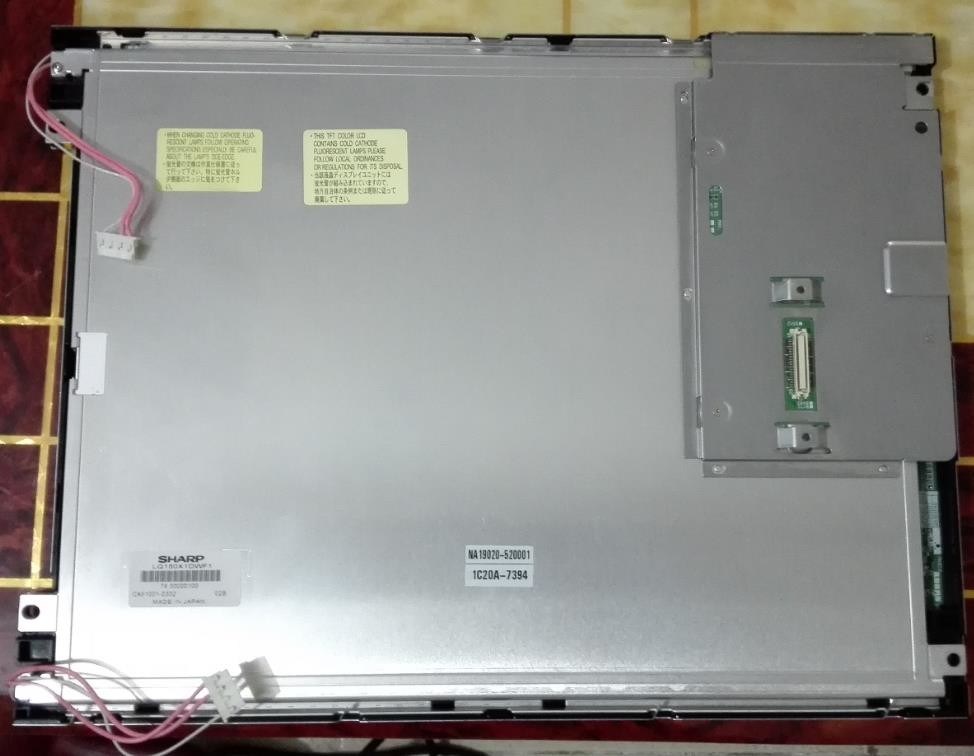

LQ150X1DWF1 Sharp 15" LCM 1024×768RGB 250cd/m² INDUSTRIAL LCD DISPLAY

LQ150X1DWF1 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 347.3(W)×263.5(H)×16.8(D) mm, viewing area size of 309.1(W)×233.1(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (2H), net weight of 1.60Kgs (Max.). As a MVA, Normally Black, Transmissive LCM product, LQ150X1DWF1 can provides 250 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 65% (NTSC). This product adopted 4 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed.
