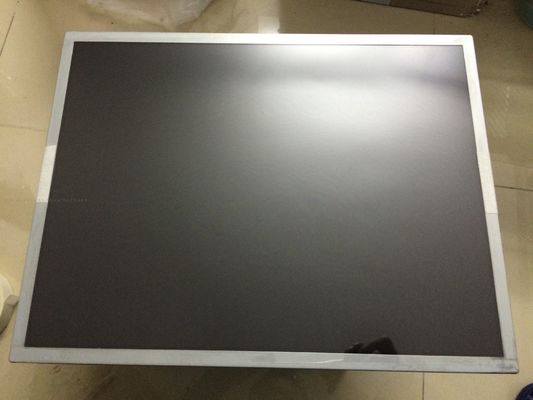

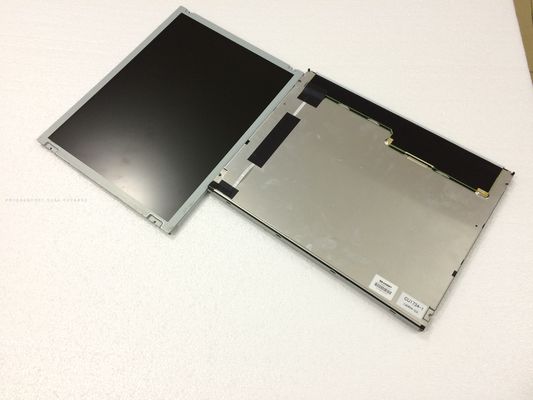

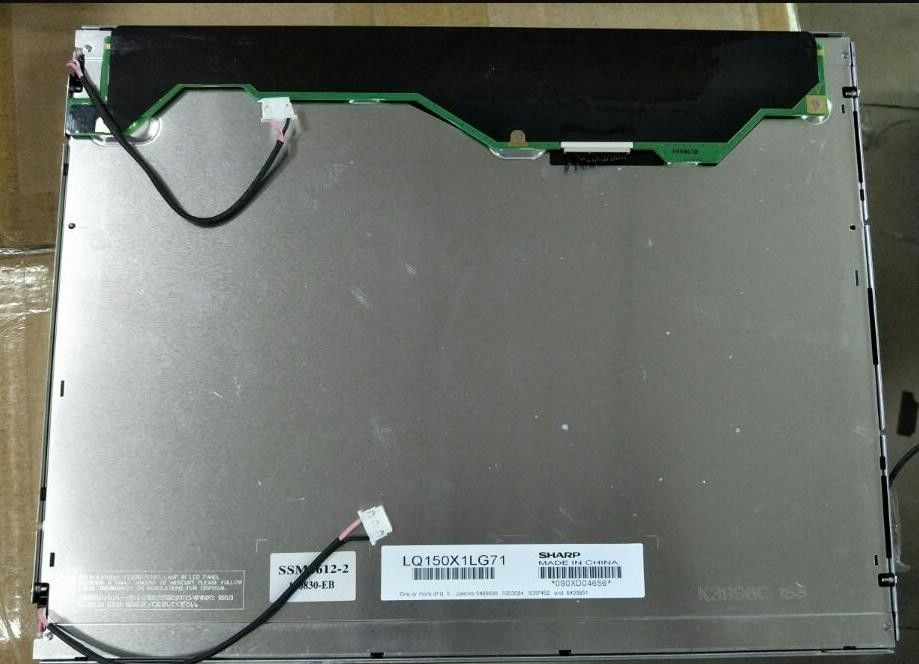

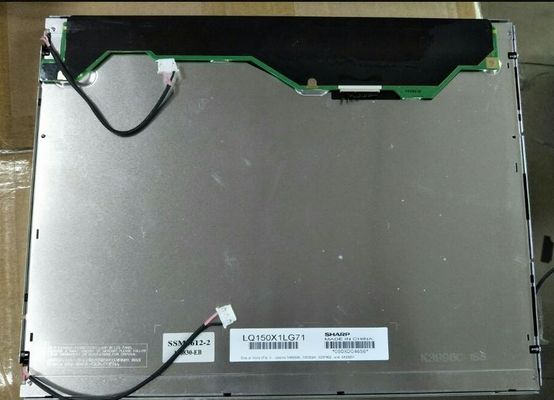

15" LCM 1024×768RGB  400cd/m² LQ150X1LAP5 Sharp TFT LCD Display

LQ150X1LAP5 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 315.8(W)×243.2(H)×10.3(D) mm, with surface treament of Glare (Haze 0%), Hard coating (2H), Antireflection, net weight of 840/870g (Typ./Max.), shape stype of Wedge (PCBA Bent, T≥5.2mm). As a TN, Normally White, Transmissive LCM product, LQ150X1LAP5 can provides 400 cd/m² display brightness 450:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 10K hours, external backlight driver is additionally needed. LQ150X1LAP5 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
