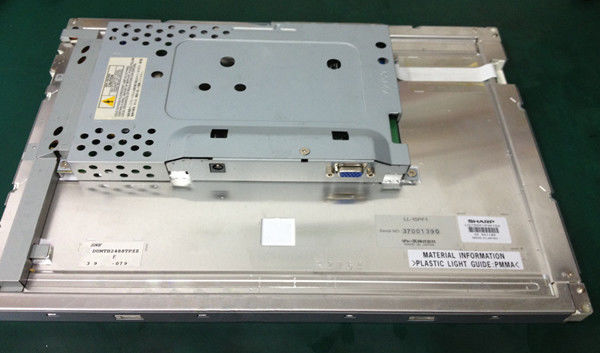

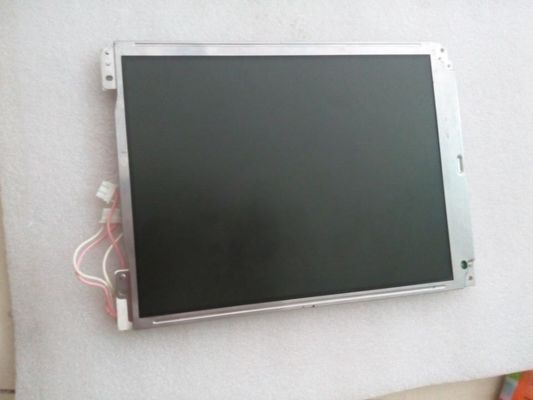

LQ150X1KW31 Sharp 15" LCM 1024×768RGB  250cd/m² INDUSTRIAL LCD DISPLAY

LQ150X1KW31 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 346(W)×255(H) mm, viewing area size of 307.7(W)×231.7(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (2H), net weight of 1.70Kgs (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ150X1KW31 can provides 250 cd/m² display brightness 400:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 4 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With Inverter.
