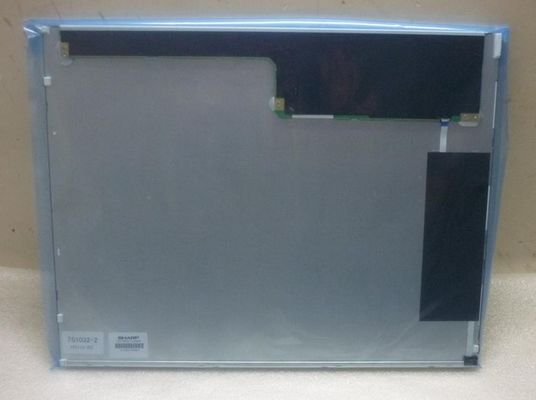

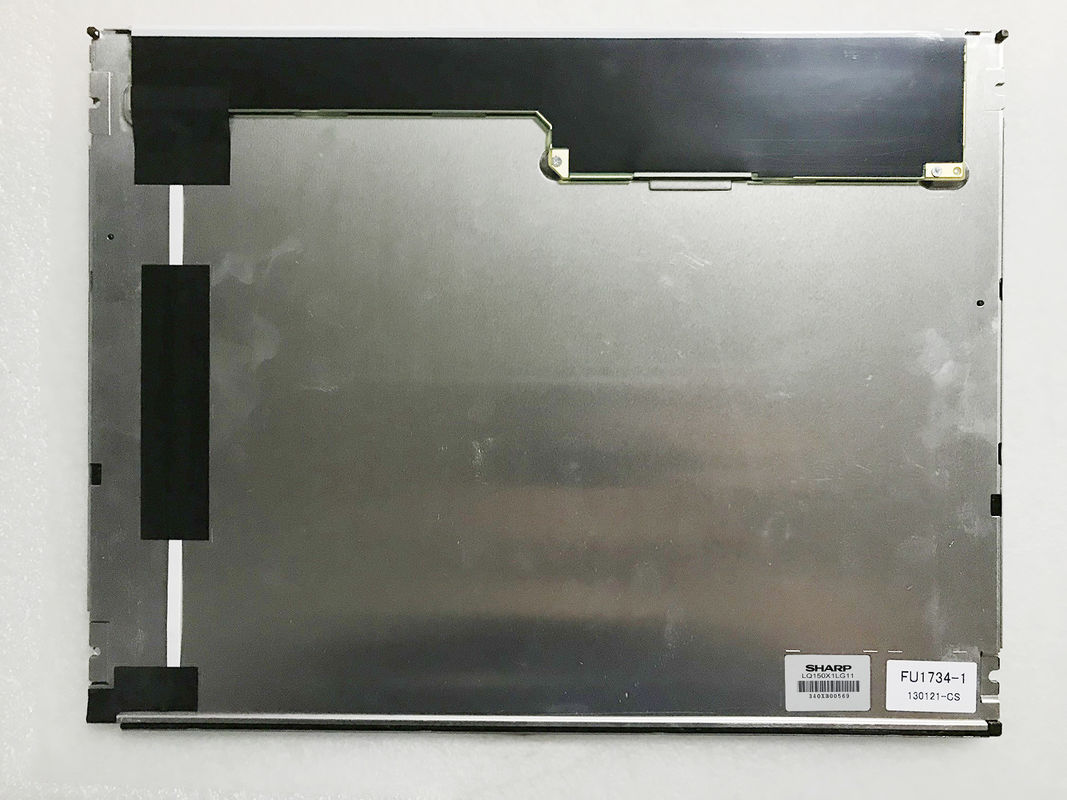

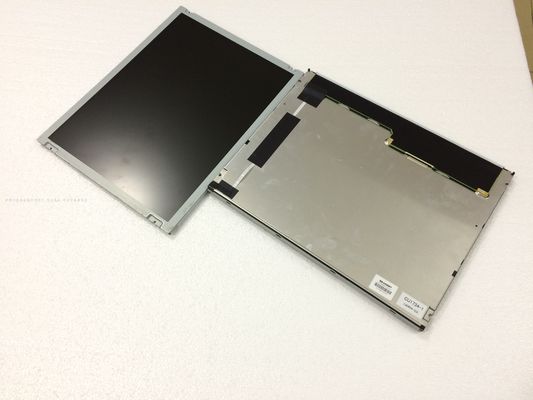

15" LCM 1024×768RGB  600cd/m² LQ150X1LG11 Sharp TFT LCD Display

LQ150 Series LQ150X1LG81 LQ150X1LG71 LQ150X1LG55 LQ150X1LG11

LQ150X1LG11 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 331.6(W)×254.7(H) mm, viewing area size of 307.2(W)×231.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 950g (Max.). As a TN, Normally White, Transmissive LCM product, LQ150X1LG11 can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 49% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver.
