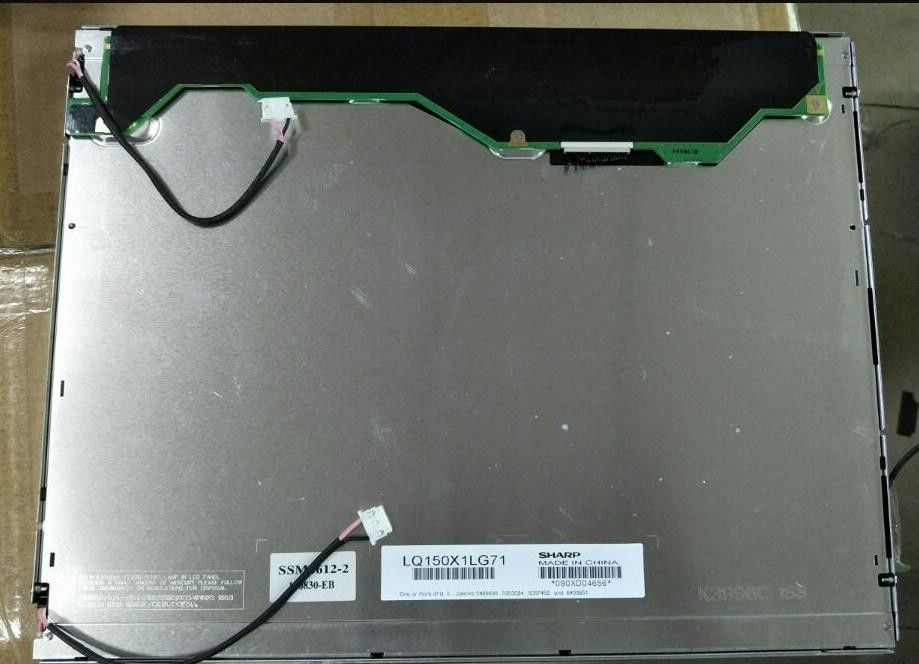

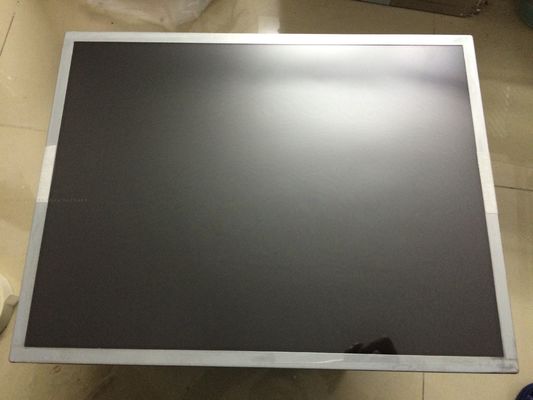

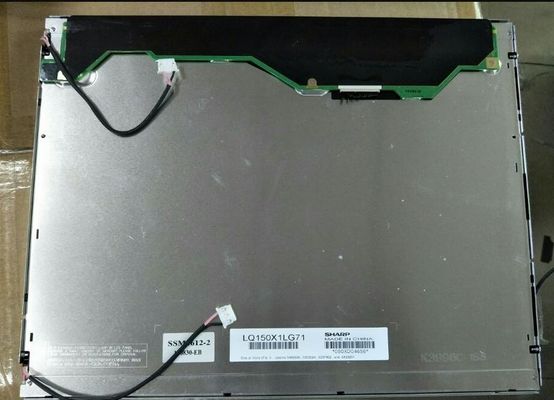

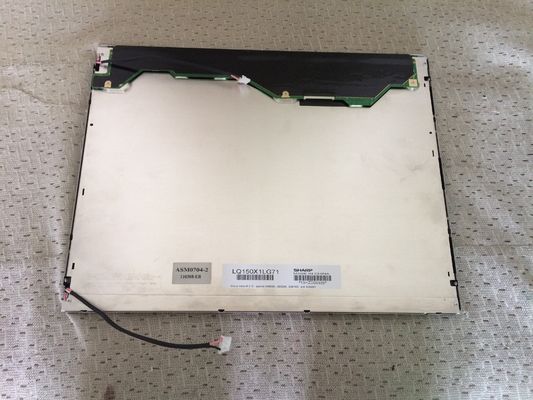

15" LCM 1024×768RGB  250cd/m² LQ150X1LG71 Sharp TFT LCD Display

15" LCM 1024×768RGB  250cd/m² LQ150X1LG71 Sharp TFT LCD Display
15" LCM 1024×768RGB  250cd/m² LQ150X1LG71 Sharp TFT LCD Display 15" LCM 1024×768RGB  250cd/m² LQ150X1LG71 Sharp TFT LCD Display 15" LCM 1024×768RGB  250cd/m² LQ150X1LG71 Sharp TFT LCD Display 15" LCM 1024×768RGB  250cd/m² LQ150X1LG71 Sharp TFT LCD Display

Large Image :  15" LCM 1024×768RGB  250cd/m² LQ150X1LG71 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ150X1LG71
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

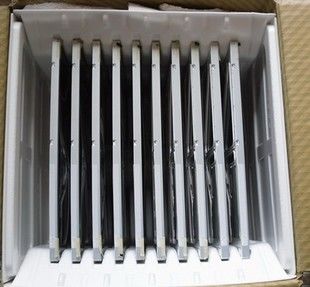

Packaging Details: 10 pcs / box 13 Kgs (Typ.) 434×395×338 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS
Contact Now

15" LCM 1024×768RGB  250cd/m² LQ150X1LG71 Sharp TFT LCD Display

Description
Model Name: LQ150X1LG71 Luminance: 250cd/m²
Screen Size: 15INCH Pixel Number: 1024(RGB)×768 (XGA) 85PPI
Viewing Angle: 60/60/45/55 Signal Type: LVDS (1 Ch, 8-bit) , 20 Pins Connector
Backlight: 2 Pcs CCFL , 50K Hours , No Driver Max. Ratings: Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 60 °C
Highlight:

CCFL TFT LCD Screen

,

SVGA Sharp LCD Display

LQ150 Series LQ150X1LG81 LQ150X1LG71 LQ150X1LG55 LQ150X1LG11





Sharp LQ150X1LG71 Mechanical Details

Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.099×0.297 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :
Display Area
304.128×228.096 mm (H×V)
Bezel Area
308.1×232.1 mm (H×V)
Outline Dim.
326×252 mm (H×V)
Outline Depth
11.2±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
1.00Kgs (Max.)
Surface
Antiglare (Haze 25%), Hard coating (3H)





Sharp LQ150X1LG71 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
550:1 (Typ.) (Transmissive)
Viewing Angle
60/60/45/55 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
2/6 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.2M (6-bit + FRC)
Color Temperature
6485K
Uniformity
1.25 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
72% coverage
Adobe RGB
54% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ150X1LG71 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
2 pcs
Life Time
50K(Min.) (Hours)
Replacement
-
Lamp Shape
Straight
Position
Edge light type (Top and Bottom)
Lamp Electrical :
Voltage Input
660V (Typ.)
Current Input
3.5/6.5/7.5mA (Min./Typ./Max.)
Frequency
40/55/70KHz (Min./Typ./Max.)
Kick-off Voltage
1400V (Max.)(Ta=0℃)
Consumption
8.6W (Typ.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHR-03VS-1
4.0 mm
3 pins
2 pcs
BLL-3PINS-HNL





Sharp LQ150X1LG71 Interface Detail

Signal Systerm :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
350mA (Typ.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF14H-20P-1.25H
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010G





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
