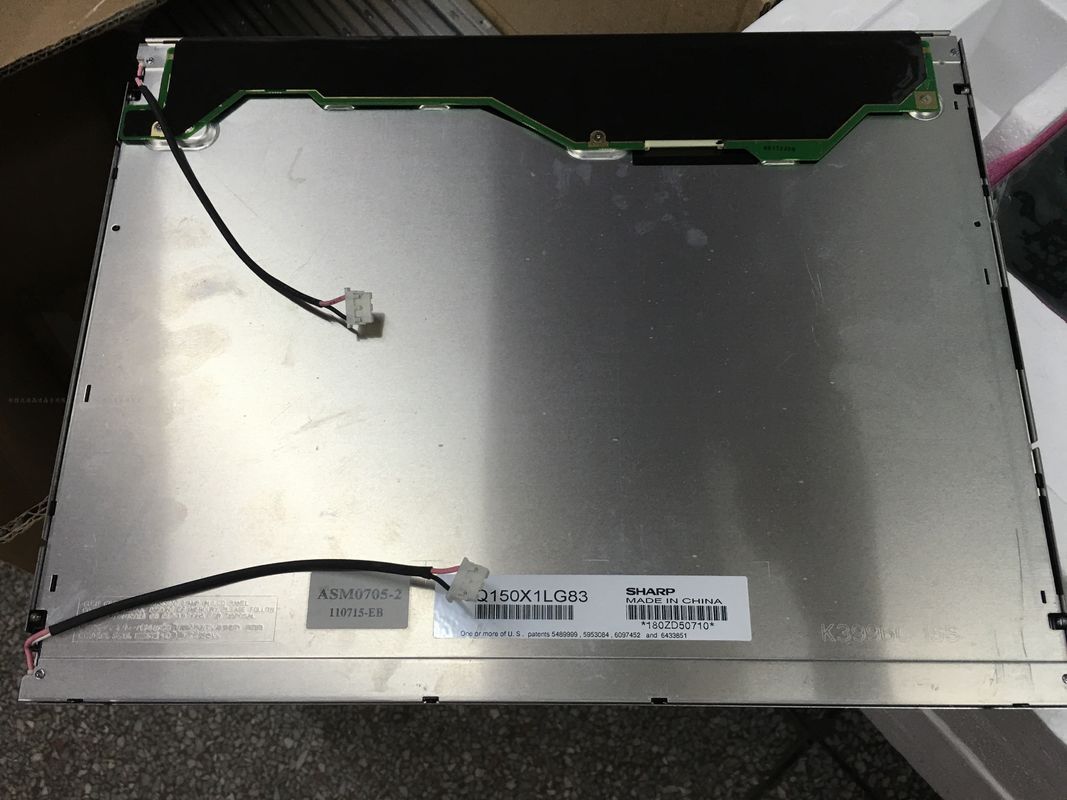

15" LCM 1024×768RGB  350cd/m² LQ150X1LG83 Sharp TFT LCD Display

LQ150X1LG83 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326(W)×252(H) mm, viewing area size of 308.1(W)×232.1(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H). As a TN, Normally White, Transmissive LCM product, LQ150X1LG83 can provides 350 cd/m² display brightness 550:1 transimissive contrast ratio, 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 2/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. LQ150X1LG83 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
