LQ150X1LG92 15" LCM 1024×768RGB  400cd/m² Sharp TFT LCD Display

LQ150X1LG92 15" LCM 1024×768RGB  400cd/m² Sharp TFT LCD Display
LQ150X1LG92 15" LCM 1024×768RGB  400cd/m² Sharp TFT LCD Display LQ150X1LG92 15" LCM 1024×768RGB  400cd/m² Sharp TFT LCD Display LQ150X1LG92 15" LCM 1024×768RGB  400cd/m² Sharp TFT LCD Display LQ150X1LG92 15" LCM 1024×768RGB  400cd/m² Sharp TFT LCD Display

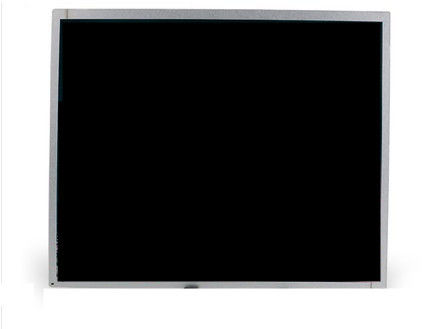

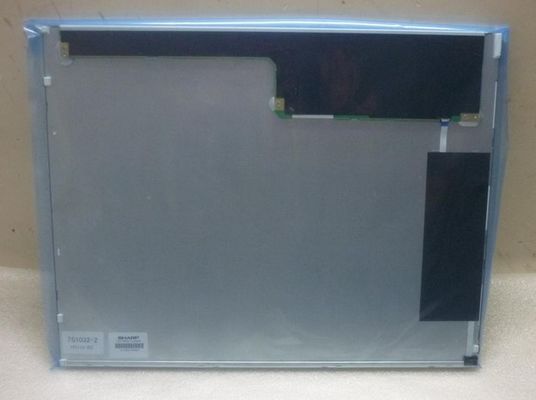

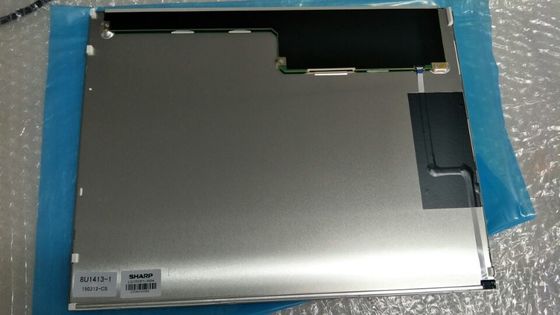

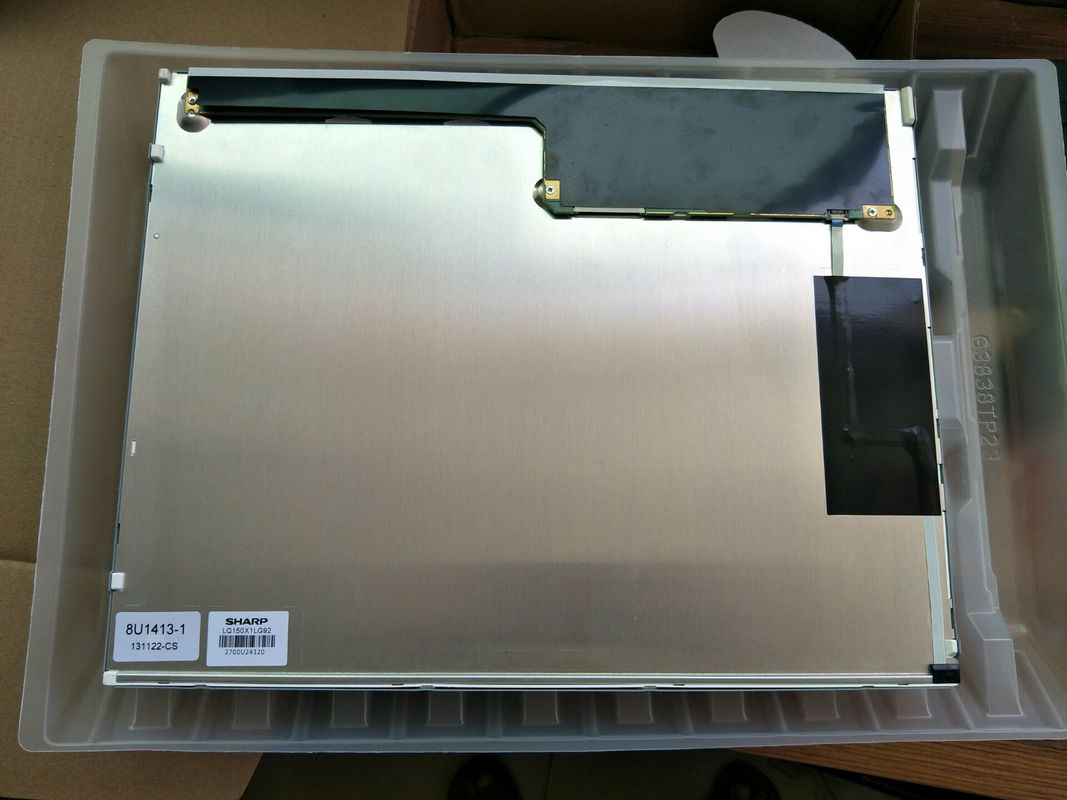

Large Image :  LQ150X1LG92 15" LCM 1024×768RGB  400cd/m² Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ150X1LG92
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 pcs / box 9.8 Kgs 450×312×400 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 5000PCS
Contact Now

LQ150X1LG92 15" LCM 1024×768RGB  400cd/m² Sharp TFT LCD Display

Description
Model Name: LQ150X1LG92 Pixel Number: 1024×768RGB
Screen Size: 15inch Backlight: WLED , 50K Hours , With LED Driver
Signal Type: LVDS (1 Ch, 8-bit) , 20 Pins Connector Viewing Angle: 80/80/65/80
Luminance: 400cd/m² Max. Ratings: Storage Temp.: -30 ~ 80 °C Operating Temp.: 0 ~ 70 °C
Highlight:

CCFL TFT LCD Screen

,

SVGA Sharp LCD Display

LQ150 Series LQ150X1LG92 LQ150X1LG91 LQ150X1LG83 LQ150X1LG82



Sharp LQ150X1LG92 Mechanical Details

Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(mm)
0.099×0.297 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.297×0.297 (H×V) [85PPI]
Mechanical Size :
Active Area(mm)
304.128(H) × 228.096(V)
Bezel Area(mm)
307.2(H) × 231.1(V)
Outline Dim.(mm)
326.5(H) × 253.5(V)
Depth(mm)
9.6±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
950g (Max.)
Treatment
Antiglare, Hard coating (3H)





Sharp LQ150X1LG92 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/65/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
30 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.305; Wy:0.335
Display Colors
16.2M (6-bit + FRC)
Color Temperature
6859K
White Uniformity
1.33 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
70%
sRGB
91% coverage
Adobe RGB
71% coverage
DCI-P3
73% coverage
Rec.2020
52% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ150X1LG92 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
300/400mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
DF14H-20P-1.25H(56)
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010G





Sharp LQ150X1LG92 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
Replaceable
Shape
-
Life Time
50K(Typ.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
SM06B-SHLS-TF
1.0 mm
6 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
450/650mA (Typ./Max.)





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
