LQ150X1LG94 Sharp 15" LCM 1024×768RGB INDUSTRIAL LCD DISPLAY

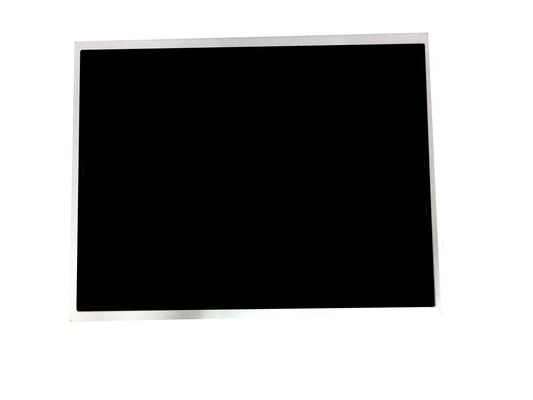

Large Image : LQ150X1LG94 Sharp 15" LCM 1024×768RGB INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	SHARP
Certification:	ISO9001
Model Number:	LQ150X1LG94

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	1000PCS

Contact Now

LQ150X1LG94 Sharp 15" LCM 1024×768RGB INDUSTRIAL LCD DISPLAY

Description

Model:	LQ150X1LG94	Configuration:	RGB Vertical Stripe
Diagonal Size:	15inch	Pixel Format:	1024(RGB)×768 [XGA] 85PPI
Active Area:	304.128(H)×228.096(V) Mm	Light Source:	WLED
Interface Type:	LVDS (1 Ch, 8-bit)	Touch Panel:	Without
High Light:	CCFL TFT LCD Screen , SVGA Sharp LCD Display

LQ150 Series LQ150X1LG98 LQ150X1LG96 LQ150X1LG94 LQ150X1LG93

Sharp LQ150X1LG94 Mechanical Details

Pixel Features :	Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.099×0.297 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.297×0.297 (H×V) [85PPI]
Mechanical Size :	Active Area(mm) 304.128(H) × 228.096(V) Bezel Area(mm) -
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type

Sharp LQ150X1LG94 Optical Details

Basic Information :	Luminance(cd/m²) - Contrast Ratio - Viewing Angle - Display Mode TN, Normally White, Transmissive Best View on - Response(ms) -
Color Performance :	White Coordinate - Display Colors 16.2M (6-bit + FRC)

Sharp LQ150X1LG94 Application Features

Basic Information : Brand Name Model Name Type Model Alias

LQ150X1LG94 a-Si TFT-LCD , LCM -

Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LQ150X1LG94 Sharp 15" LCM 1024×768RGB INDUSTRIAL LCD DISPLAY 0
