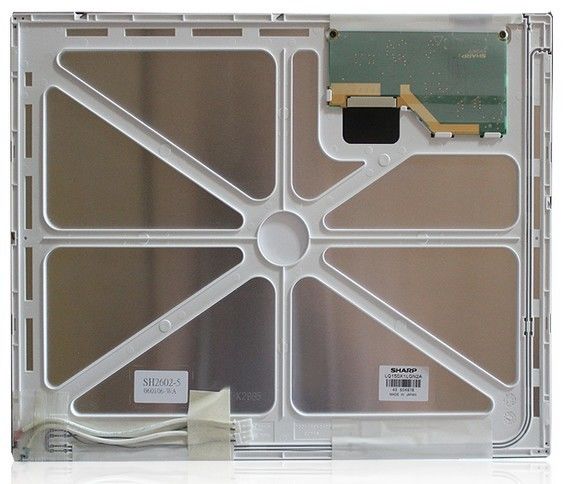

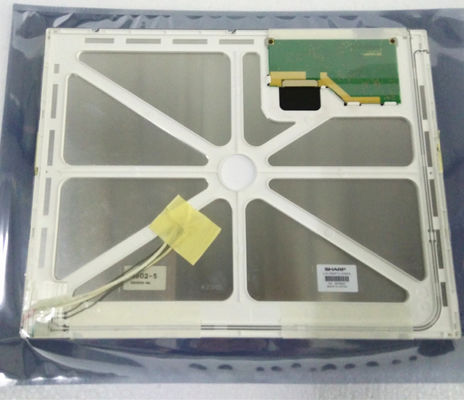

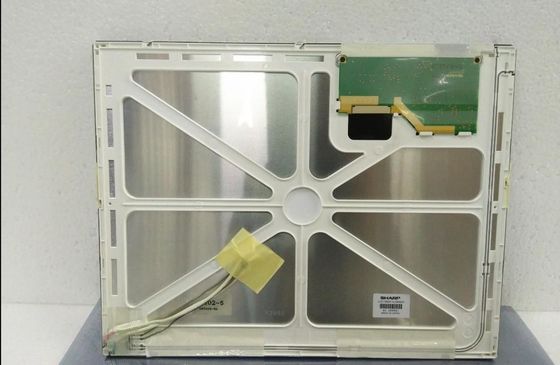

15" LCM 1024×768RGB 260cd/m² LQ150X1LGN2A Sharp TFT LCD Display

Large Image : 15" LCM 1024×768RGB 260cd/m² LQ150X1LGN2A Sharp TFT LCD Display

Product Details:

Place of Origin:	JAPAN
Brand Name:	SHARP
Certification:	ISO9001
Model Number:	LQ150X1LGN2A

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	10 pcs / box 12.0 Kgs (Typ.) 408×340×398 mm
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	200PCS

Contact Now

15" LCM 1024×768RGB 260cd/m² LQ150X1LGN2A Sharp TFT LCD Display

Description

MODEL NUMBER:	LQ150X1LGN2A	SIZE:	15INCH
RESOLUTION:	1024×768RGB	Lamp Type:	CCFL
Signal Interface:	LVDS	BRIGHTNESS:	260cd/m²
Viewing Angle:	60/60/45/55	Environment:	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C
Highlight:	CCFL TFT LCD Screen , SVGA Sharp LCD Display

LQ150 Series LQ150X1LGN7 LQ150X1LGN2E LQ150X1LGN2C LQ150X1LGN2A LQ150X1LGN2

Sharp LQ150X1LGN2A Mechanical Details

Pixel Features :	Pixel Format 1024(RGB)×768, XGA Dot Pitch 0.099×0.297 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :	Display Area 304.128×228.096 mm (H×V) Bezel Area 308.1×232.1 mm (H×V) Outline Dim. 326×252 mm (H×V) Outline Depth 11.0±0.5 mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight 1.10Kgs (Max.) Surface Antiglare (Haze 28%), Hard coating (2H)

Sharp LQ150X1LGN2A Optical Details

Basic Information :	Brightness 260 cd/m² (Typ.) Contrast Ratio 350:1 (Typ.) (Transmissive) Viewing Angle 60/60/45/55 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction 6 o'clock Response Time 5/20 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.2M (6-bit + FRC) Color Temperature 6485K Uniformity 1.25 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 47% sRGB 65% coverage Adobe RGB 50% coverage DCI-P3 49% coverage Rec.2020 35% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LQ150X1LGN2A Backlight Details

Back-light Features :	Lamp Type CCFL Amount 2 pcs Life Time 50K(Min.) (Hours) Replacement - Lamp Shape L shape Position Edge light type (Bottom side)
Lamp Electrical :	Voltage Input 1000/1150V (Typ./Max.) Current Input 3.0/4.5/5.0mA (Min./Typ./Max.) Frequency 40/60/70KHz (Min./Typ./Max.) Kick-off Voltage 2200V (Max.)(Ta=0℃) Consumption 9.0/10.4W (Typ./Max.)
Interface Features :	Type Connector Position Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JST BHSR-02VS-1 3.5 mm 2 pins 2 pcs BLL-2PINS-HL

Sharp LQ150X1LGN2A Interface Detail

Signal Systerm :	LVDS (1 ch, 8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3V (Typ.) Current Input 425mA (Typ.)
Interface Features :	Type Connector Position
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration HRS DF14H-20P-1.25H 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-020C

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
