LQ150X1LGN2E Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

LQ150X1LGN2E Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY
LQ150X1LGN2E Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY LQ150X1LGN2E Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY LQ150X1LGN2E Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

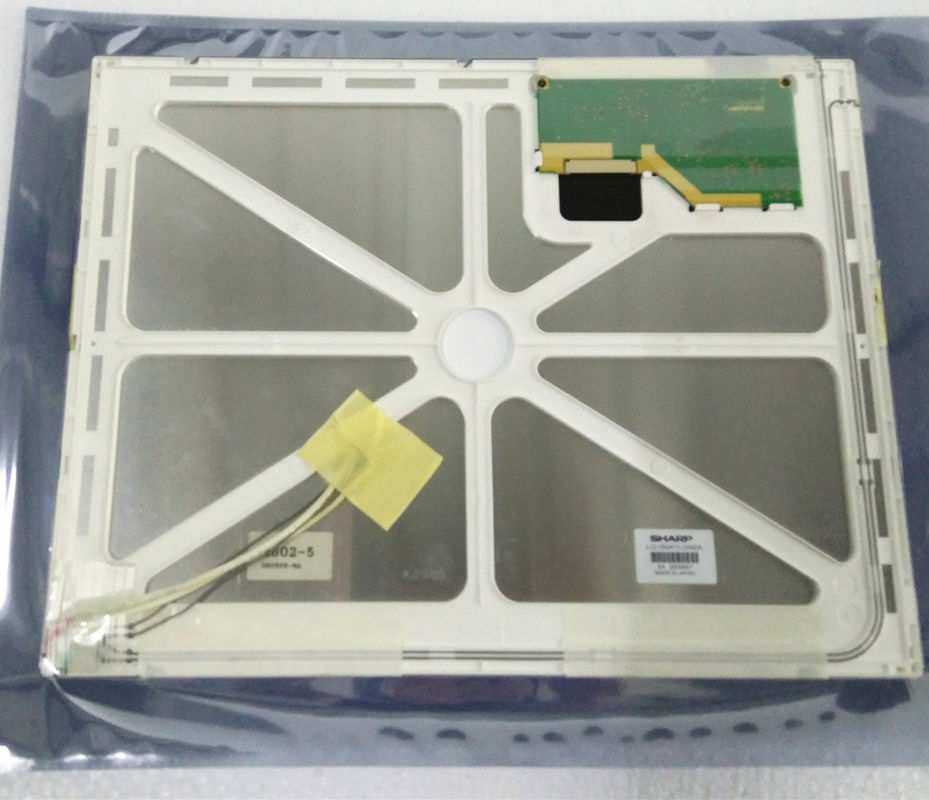

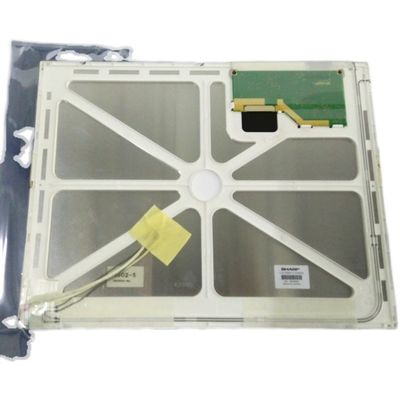

Large Image :  LQ150X1LGN2E Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ150X1LGN2E
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS
Contact Now

LQ150X1LGN2E Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

Description
Panel Model: LQ150X1LGN2E Size: 15"
Brightness: 350 Cd/m² (Typ.) Viewing Angle: 60/60/45/55
Resolution: 1024(RGB)×768, XGA, 85PPI Signal Interface: LVDS (1 Ch, 8-bit) , 20 Pins Connector
Lamp Type: 2 Pcs CCFL , 50K Hours , Without Driver Environment: Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 60 °C
High Light:

CCFL TFT LCD Screen

,

SVGA Sharp LCD Display

LQ150 Series LQ150X1LGN7 LQ150X1LGN2E LQ150X1LGN2C LQ150X1LGN2A LQ150X1LGN2





Sharp LQ150X1LGN2E Mechanical Details

Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(mm)
0.099×0.297 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.297×0.297 (H×V) [85PPI]
Mechanical Size :
Active Area(mm)
304.128(H) × 228.096(V)
Bezel Area(mm)
308.1(H) × 232.1(V)
Outline Dim.(mm)
326(H) × 252(V)
Depth(mm)
11.0±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
1.10Kgs (Max.)
Treatment
Antiglare (Haze 28%), Hard coating (2H)





Sharp LQ150X1LGN2E Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
350:1 (Typ.) (Transmissive)
Viewing Angle
60/60/45/55 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
5/20 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.2M (6-bit + FRC)
Color Temperature
6485K
White Uniformity
1.25 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
47%
sRGB
65% coverage
Adobe RGB
50% coverage
DCI-P3
49% coverage
Rec.2020
35% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ150X1LGN2E Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
425mA (Typ.)
Signal Type :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
DF14H-20P-1.25H
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-020C





Sharp LQ150X1LGN2E Backlight Details

Backlight Features :
Type
CCFL
Quantity
2 pcs
Position
Edge light type (Bottom side)
Replacement
-
Shape
L shape
Life Time
50K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
1000/1150V (Typ./Max.)
Current Supply
3.0/4.5/5.0mA (Min./Typ./Max.)
Frequency
40/60/70KHz (Min./Typ./Max.)
Startup Voltage
2200V (Max.)(Ta=0℃)
Consumption
9.0/10.4W (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
BHSR-02VS-1
3.5 mm
2 pins
2 pcs
BLL-2PINS-HL
Backlight Driver :
No





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
