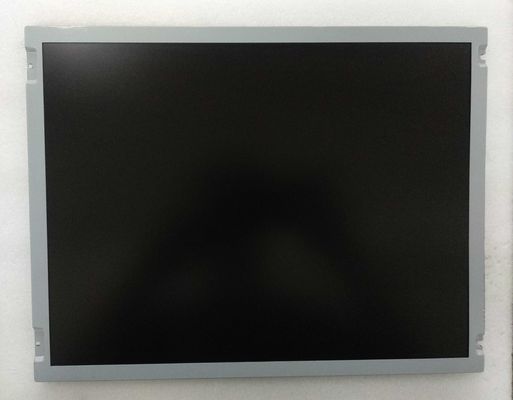

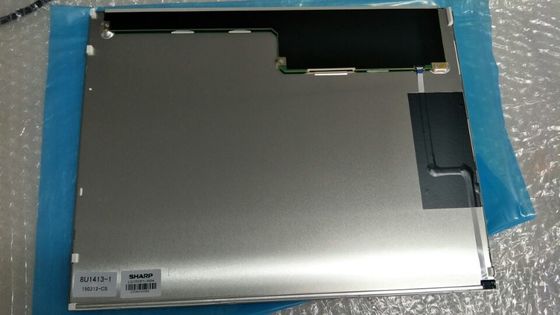

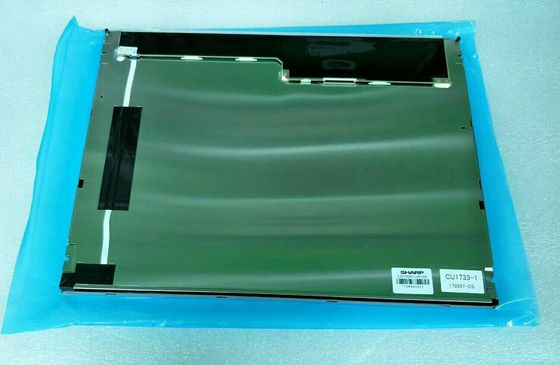

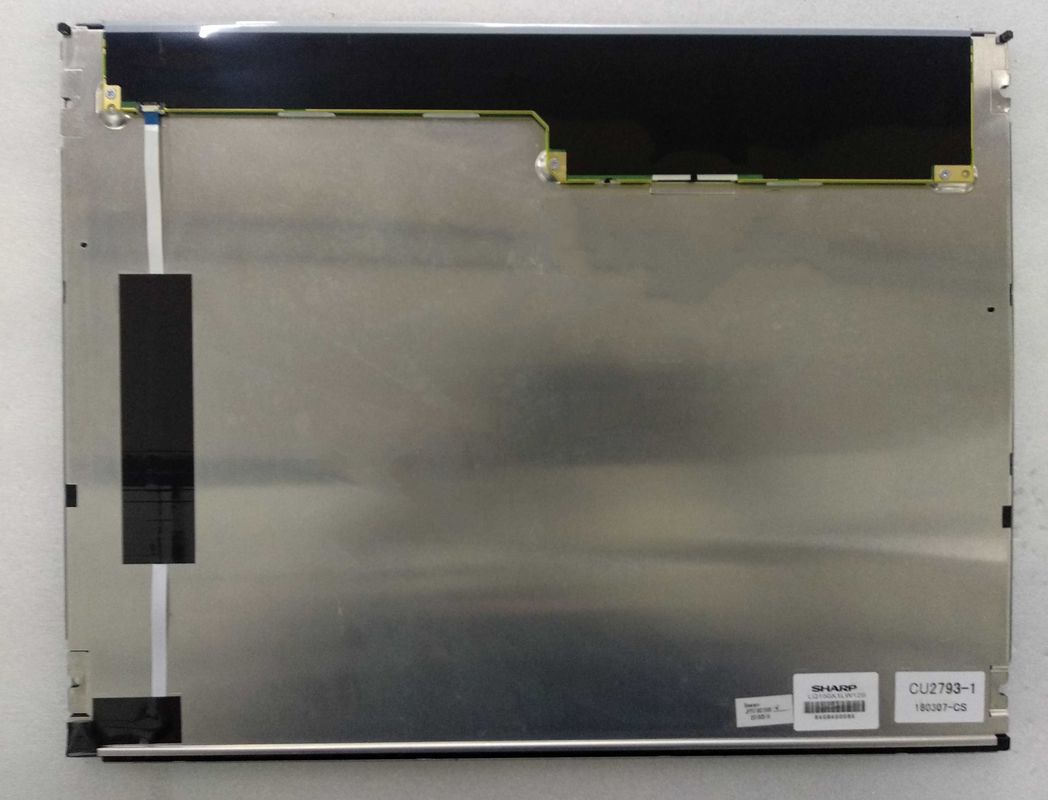

LQ150X1LW12B Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

LQ150X1LW12B Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY
LQ150X1LW12B Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY LQ150X1LW12B Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY LQ150X1LW12B Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY LQ150X1LW12B Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LQ150X1LW12B Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ150X1LW12B
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 pcs / box 10.5 Kgs 450×312×406 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS
Contact Now

LQ150X1LW12B Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

Description
Panel Size: 15" Panel Model: LQ150X1LW12B
Resolution: 1024(RGB)×768, XGA, 85PPI Brightness: 350 Cd/m² (Typ.)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) Lamp Type: WLED , 70K Hours , With LED Driver
Signal Interface: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector Environment: Operating Temp.: 0 ~ 65 °C ; Storage Temp.: -25 ~ 65 °C
Highlight:

XGA Industrial LCD Panel

,

SVGA Sharp TFT LCD Screen

LQ150 Series LQ150X1LW12B LQ150X1LW12



Sharp LQ150X1LW12B Optical Details

Basic Detail :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
30 (Typ.)(Tr+Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
ASV, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.305; Wy:0.320
Support Color
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
7037K
White Variation
1.33 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
87%
sRGB
98% coverage
Adobe RGB
85% coverage
DCI-P3
90% coverage
Rec.2020
65% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ150X1LW12B Mechanical Details

Pixel Features :
Number of Pixel
1024(RGB)×768, XGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.099×0.297 mm
Pixel Pitch(W×H)
0.297×0.297 mm [85PPI]
Physical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
331.6(W)×254.76(H) mm
Bezel Opening
307.2(W)×231.1(H) mm
Overall Depth
6.0/9.8 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel
Other Detail :
Mass
950g (Max.)
Surface
Antiglare, Hard coating (3H)





Sharp LQ150X1LW12B Interface Detail

Signal Electrical :
Input Current
360/800mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
DF14H-20P-1.25H(56)
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010G





Sharp LQ150X1LW12B Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
70K(Typ.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
SM06B-SHLS-TF
1.0 mm
6 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
12.0V (Typ.)
Input Current
0.75/1.20A (Typ./Max.)





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
