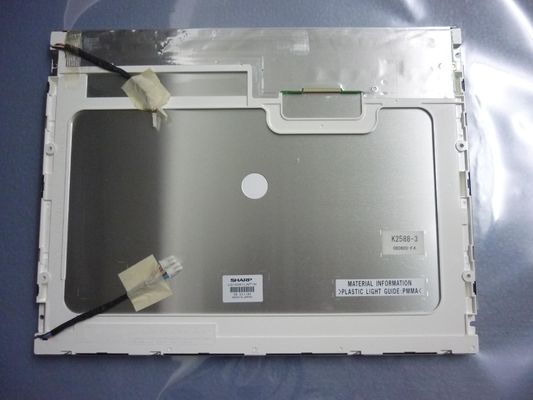

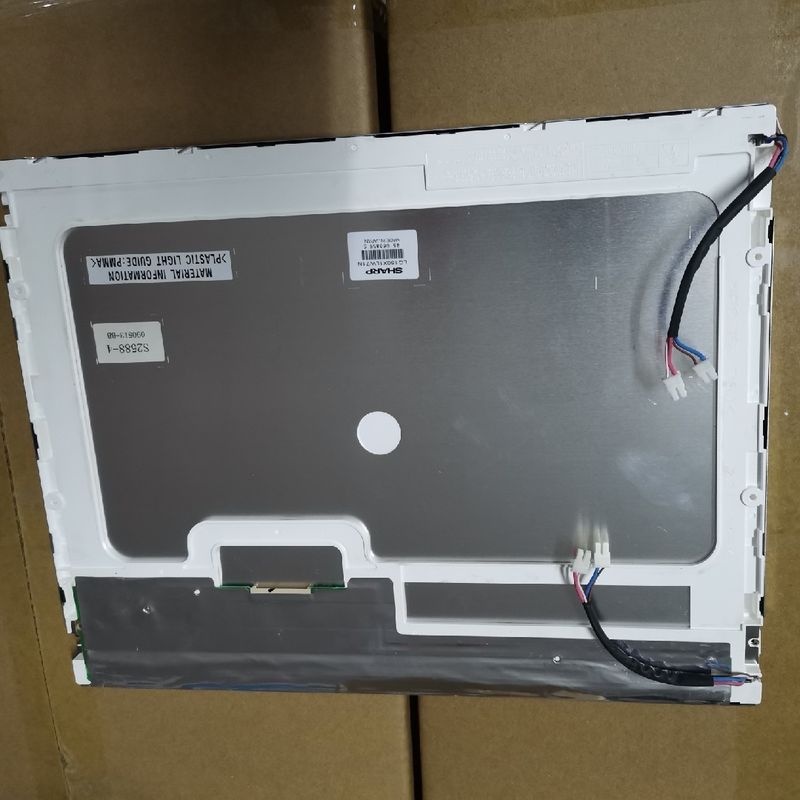

15" LCM 1024×768RGB 250cd/m² LQ150X1LW71N Sharp TFT LCD Display

Large Image : 15" LCM 1024×768RGB 250cd/m² LQ150X1LW71N Sharp TFT LCD Display

Product Details:

Place of Origin:	JAPAN
Brand Name:	Sharp
Certification:	ISO9001
Model Number:	LQ150X1LW71N

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

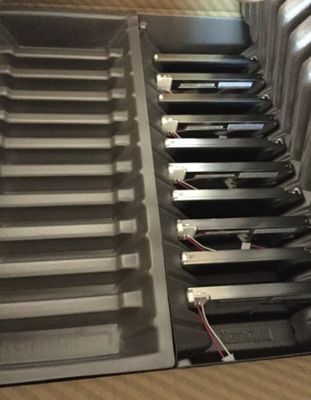

Packaging Details:	5 pcs / box 8.2 Kgs 319×402×280 mm
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	500PCS

Contact Now

15" LCM 1024×768RGB 250cd/m² LQ150X1LW71N Sharp TFT LCD Display

Description

Screen Size:	15.0 Inch	Model Name:	LQ150X1LW71N
Luminance:	250cd/m²	Pixel Number:	1024(RGB)×768 (XGA) 85PPI
Viewing Angle:	85/85/85/85 (Typ.)(CR≥10)	Backlight:	4 Pcs CCFL , 50K Hours , No Driver
Signal Type:	LVDS (1 Ch, 8-bit) , 20 Pins Connector	Max. Ratings:	Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 60 °C
Highlight:	XGA Industrial LCD Panel , SVGA Sharp TFT LCD Screen

LQ150 Series LQ150X1LW73 LQ150X1LW72 LQ150X1LW71U LQ150X1LW71N

Sharp LQ150X1LW71N Mechanical Details

Pixel Features :	Pixel Format 1024(RGB)×768, XGA Dot Pitch 0.099×0.297 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :	Display Area 304.128×228.096 mm (H×V) Bezel Area 307.2×231.1 mm (H×V) Outline Dim. 331.6×254.76 mm (H×V) Outline Depth 12.5±0.5 mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel
Other Features :	Weight 1.30Kgs (Max.) Surface Antiglare (Haze 25%), Hard coating (3H)

Sharp LQ150X1LW71N Optical Details

Basic Information :	Brightness 250 cd/m² (Typ.) Contrast Ratio 400:1 (Typ.) (Transmissive) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Optical Mode ASV, Normally Black, Transmissive Viewing Direction Symmetry Response Time 25 (Typ.)(Tr+Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.2M (6-bit + FRC) Color Temperature 6485K Uniformity 1.25 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 69% sRGB 90% coverage Adobe RGB 72% coverage DCI-P3 72% coverage Rec.2020 52% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LQ150X1LW71N Backlight Details

Back-light Features :	Lamp Type CCFL Amount 4 pcs Life Time 50K(Min.) (Hours) Replacement Replaceable (LQ0DDB5387) Lamp Shape Straight Position Edge light type (Top and Bottom)
Lamp Electrical :	Voltage Input 615/700V (Typ./Max.) Current Input 3.5/6.5/7.5mA (Min./Typ./Max.) Frequency 40/60/70KHz (Min./Typ./Max.) Kick-off Voltage 1080/1480V (Max.)(Ta=+25/0℃) Consumption 16.0/18.2W (Typ./Max.)
Interface Features :	Type Connector Position - Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JST BHSR-02VS-1 3.5 mm 2 pins 4 pcs BLL-2PINS-HL

Sharp LQ150X1LW71N Interface Detail

Signal Systerm :	LVDS (1 ch, 8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3V (Typ.) Current Input 630/850mA (Typ./Max.)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration HRS DF14H-20P-1.25H 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-020C

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
