LQ150X1LW72 Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

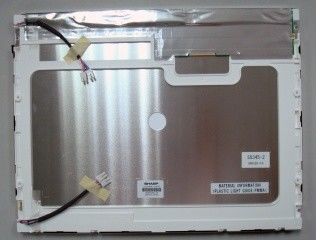

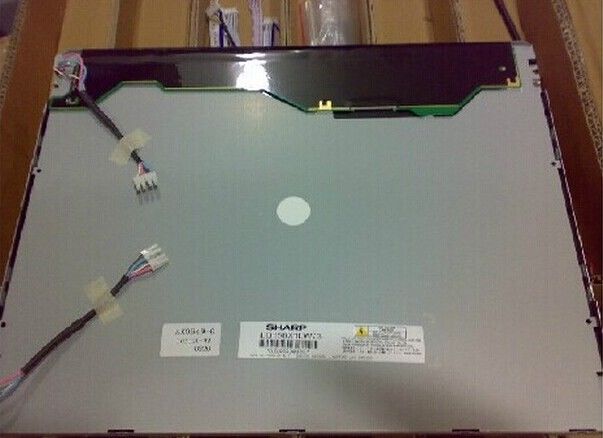

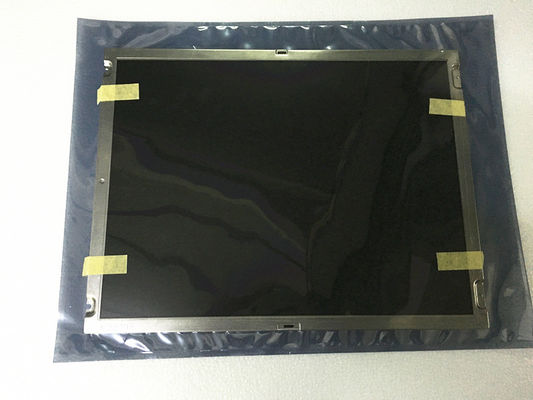

Large Image : LQ150X1LW72 Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	Sharp
Certification:	ISO9001
Model Number:	LQ150X1LW72

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	5 pcs / box 8.5 Kgs 319×402×280 mm (L×W×H)
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	200PCS

Contact Now

LQ150X1LW72 Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY

Description

Panel Size:	15"	Panel Model:	LQ150X1LW72
Resolution:	1024(RGB)×768, XGA, 85PPI	Viewing Angle:	85/85/85/85 (Typ.)(CR≥10)
Brightness:	350 Cd/m² (Typ.)	Lamp Type:	4 Pcs CCFL , 50K Hours , Without Driver
Signal Interface:	LVDS (1 Ch, 8-bit) , 20 Pins Connector	Environment:	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 60 °C
Highlight:	XGA Industrial LCD Panel , SVGA Sharp TFT LCD Screen

LQ150 Series LQ150X1LW73 LQ150X1LW72 LQ150X1LW71U LQ150X1LW71N

Sharp LQ150X1LW72 Mechanical Details

Pixel Features :	Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.099×0.297 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.297×0.297 (H×V) [85PPI]
Mechanical Size :	Active Area(mm) 304.128(H) × 228.096(V) Bezel Area(mm) 307.2(H) × 231.1(V) Outline Dim.(mm) 331.6(H) × 254.76(V) Depth(mm) 12.5±0.5
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting :	Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel
Other Spec :	Weight 1.35Kgs (Max.) Treatment Antiglare (Haze 42%), Hard coating (2H), Antireflection

Sharp LQ150X1LW72 Optical Details

Basic Information :	Luminance(cd/m²) 350 (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode ASV, Normally Black, Transmissive Best View on Symmetry Response(ms) 25 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 16.2M (6-bit + FRC) Color Temperature 6485K White Uniformity 1.25 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 69% sRGB 90% coverage Adobe RGB 72% coverage DCI-P3 72% coverage Rec.2020 52% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LQ150X1LW72 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 630/850mA (Typ./Max.)
Signal Type :	LVDS (1 ch, 8-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration HRS DF14H-20P-1.25H 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-020C

Sharp LQ150X1LW72 Backlight Details

Backlight Features :	Type CCFL Quantity 4 pcs Position Edge light type (Top and Bottom) Replacement Replaceable (LQ0DDB5387) Shape Straight Life Time 50K(Min.) (Hours)
Lamp Electrical :	Voltage Supply 615/700V (Typ./Max.) Current Supply 3.5/6.5/7.5mA (Min./Typ./Max.) Frequency 40/60/70KHz (Min./Typ./Max.) Startup Voltage 1080/1480V (Max.)(Ta=+25/0℃) Consumption 16.0/18.2W (Typ./Max.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST BHSR-02VS-1 3.5 mm 2 pins 4 pcs BLL-2PINS-HL
Backlight Driver :	No

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
