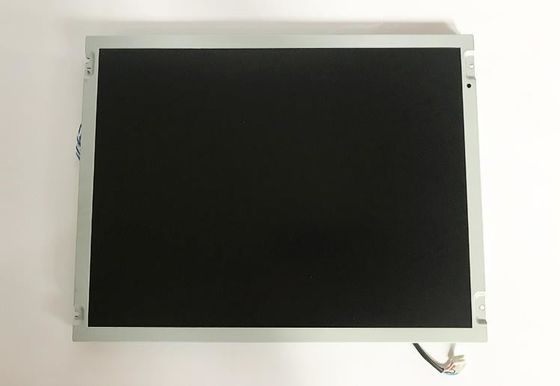

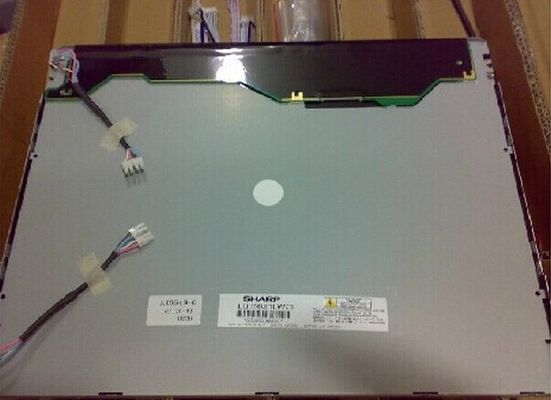

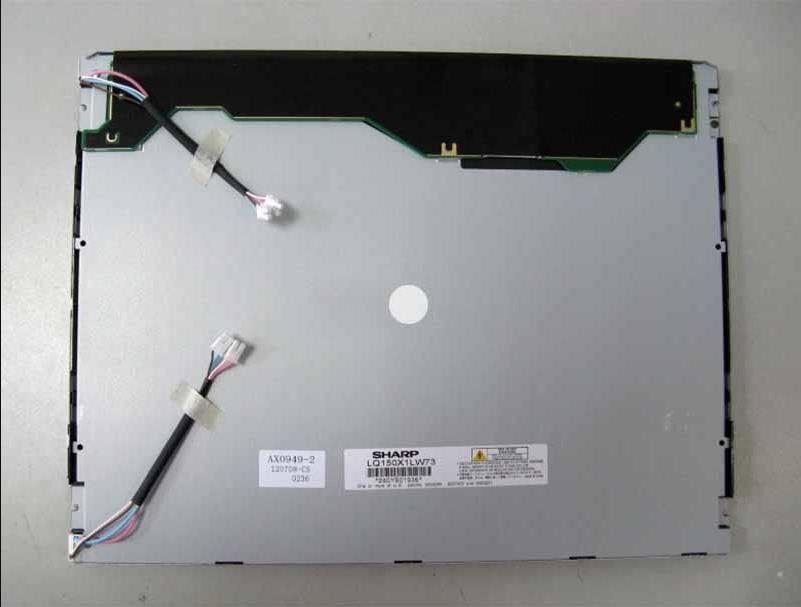

Product Details:
|
| Panel Size: | 15" | Panel Model: | LQ150X1LW73 |
|---|---|---|---|
| Outline Size: | 331.6(W)×254.76(H) ×13(D) Mm | Display Area: | 304.128(W)×228.096(H) Mm |
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Brightness: | 350 Cd/m² (Typ.) | Signal Interface: | LVDS (1 Ch, 8-bit) , 20 Pins Connector |
| Lamp Type: | 4 Pcs CCFL , 50K Hours | Environment: | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 65 °C |
| Highlight: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
LQ150 Series LQ150X1LW73 LQ150X1LW72 LQ150X1LW71U LQ150X1LW71N
| Basic Detail : | Manufacturer | SHARP | Model Name | LQ150X1LW73 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 15.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -25 ~ 65 °C |
| Vibration Level | 1.0G (9.8 m/s²) | RoHS |
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 35 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ASV, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 69% | sRGB | 90% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 72% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] | |
| Physical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 331.6(W)×254.76(H) mm |
| Bezel Opening | 307.2(W)×231.1(H) mm | Overall Depth | 12.5±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel | |||
| Other Detail : | Mass | 1.45Kgs (Max.) | Surface | Antiglare (Haze 42%), Hard coating (3H), Antireflection |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Signal Electrical : | Input Current | 400/700mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF14H-20P-1.25H | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-020C | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 4 pcs | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 3.5/6.5/7.5mA (Min./Typ./Max.) | Input Voltage | 615/700V (Typ./Max.) | ||
| Frequency | 40/60/70KHz (Min./Typ./Max.) | Turn-on Voltage | 1080/1480V (Max.)(Ta=+25/0℃) | |||
| Consumption | 16.0/18.2W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1(N) | 4 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
LQ150X1LW73 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 331.6(W)×254.76(H)×13(D) mm, viewing area size of 307.2(W)×231.1(H) mm, with surface treament of Antiglare (Haze 42%), Hard coating (3H), Antireflection, net weight of 1.45Kgs (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ150X1LW73 can provides 350 cd/m² display brightness 600:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 70% (NTSC). This product adopted 4 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours.
