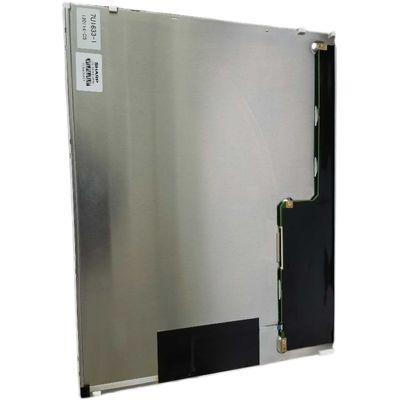

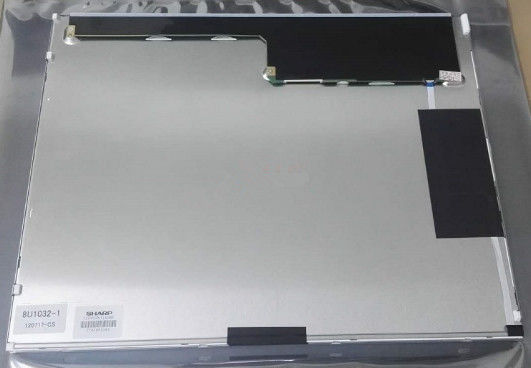

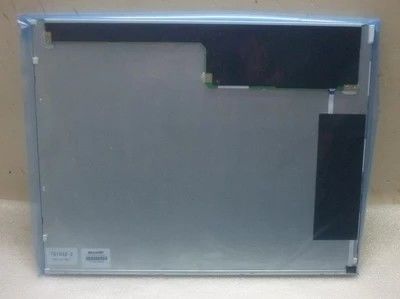

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ150X1LW92 |
|---|---|---|---|
| Arrangement: | RGB Vertical Stripe | Screen Size: | 15INCH |
| Pixel Number: | 1024(RGB)×768 | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Signal Type: | LVDS (1 Ch, 8-bit) , 30 Pins Connector | Backlight: | WLED , With LED Driver |
| Max. Ratings: | Storage Temp.: -25 ~ 65 °C Operating Temp.: 0 ~ 60 °C | ||
| High Light: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
LQ150 Series LQ150X1LW96 LQ150X1LW95 LQ150X1LW94 LQ150X1LW93 LQ150X1LW92
| Basic Information : | |
|---|---|
| Environment : |
| Pixel Features : | |
|---|---|
| Mechanical Size : | |
| Outline Features : | |
| Mounting : | |
| Other Spec : |
| Basic Information : | |
|---|---|
| Color Performance : |
| Frame Rate : | |
|---|---|
| Reverse Scan : |
| Signal Electrical : | |
|---|---|
| Signal Type : | |
| Interface Features : | |
| Interface Detail : |
|
LQ150X1LW92 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10.1(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 950g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ150X1LW92 can provides 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 70% (NTSC).
