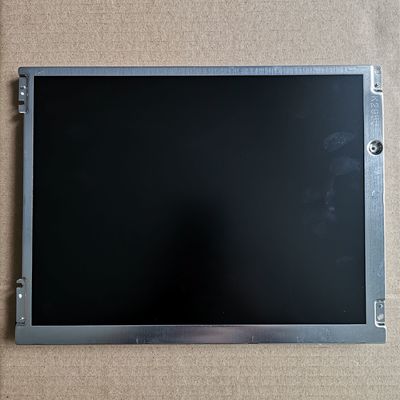

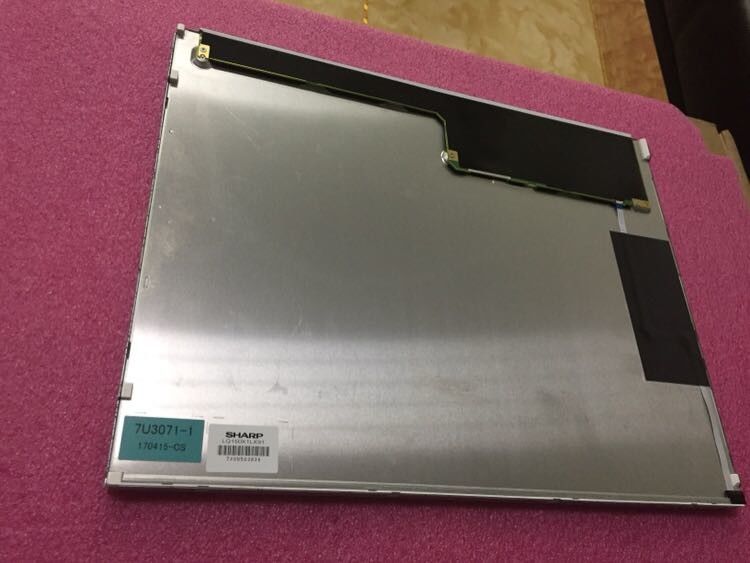

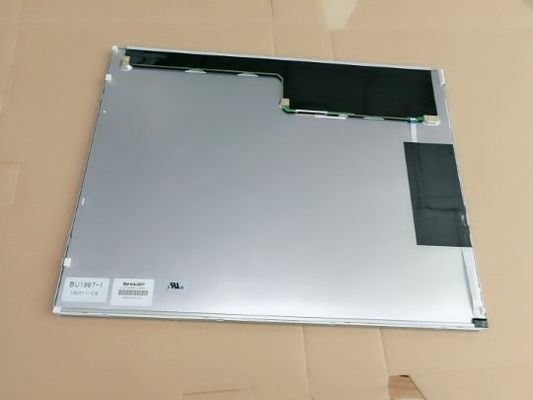

Product Details:
|
| Panel Brand: | Sharp | Panel Size: | 15" |
|---|---|---|---|
| Panel Model: | LQ150X1LX91 | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Brightness: | 300cd/m² |
| Signal Interface: | LVDS (1 Ch, 8-bit) , 20 Pins Connector | Lamp Type: | WLED , 30K Hours , With LED Driver |
| Environment: | Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -25 ~ 65 °C | ||
| Highlight: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
LQ150 Series LQ150X1LX92 LQ150X1LX91 LQ150X1LX88
| Basic Detail : | Manufacturer | SHARP | Model Name | LQ150X1LX91 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 15.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 65 °C | ST Temperature | -25 ~ 65 °C |
| Vibration Level | 1.0G (9.8 m/s²) | RoHS |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 35 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ASV, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.320 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 7037K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 69% | sRGB | 90% coverage |
| Adobe RGB | 70% coverage | DCI-P3 | 72% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] | |
| Physical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 326.5(W)×253.5(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm | Overall Depth | 10.1 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.11Kgs (Max.) | Surface | Antiglare (Haze 3%), Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Signal Electrical : | Input Current | 390/500mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF14H-20P-1.25H | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010G | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | - | Life | 30K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHLS-TF | 1 pcs | 1.0 mm | 6 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 0.72/1.10A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
