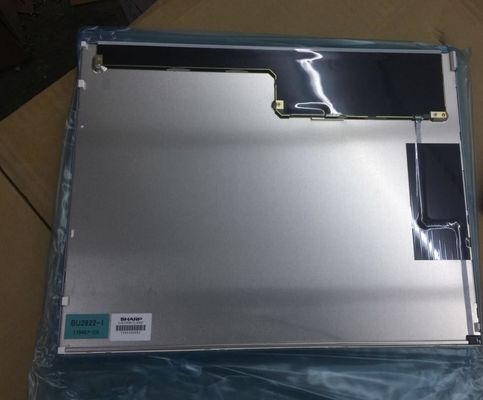

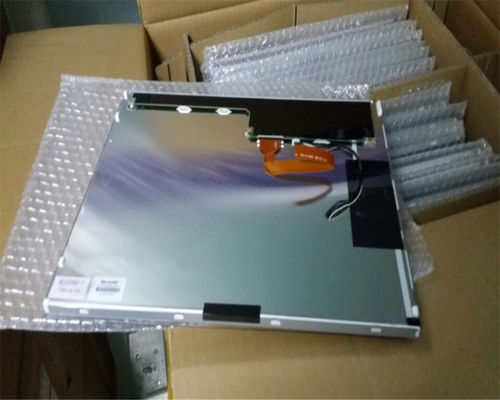

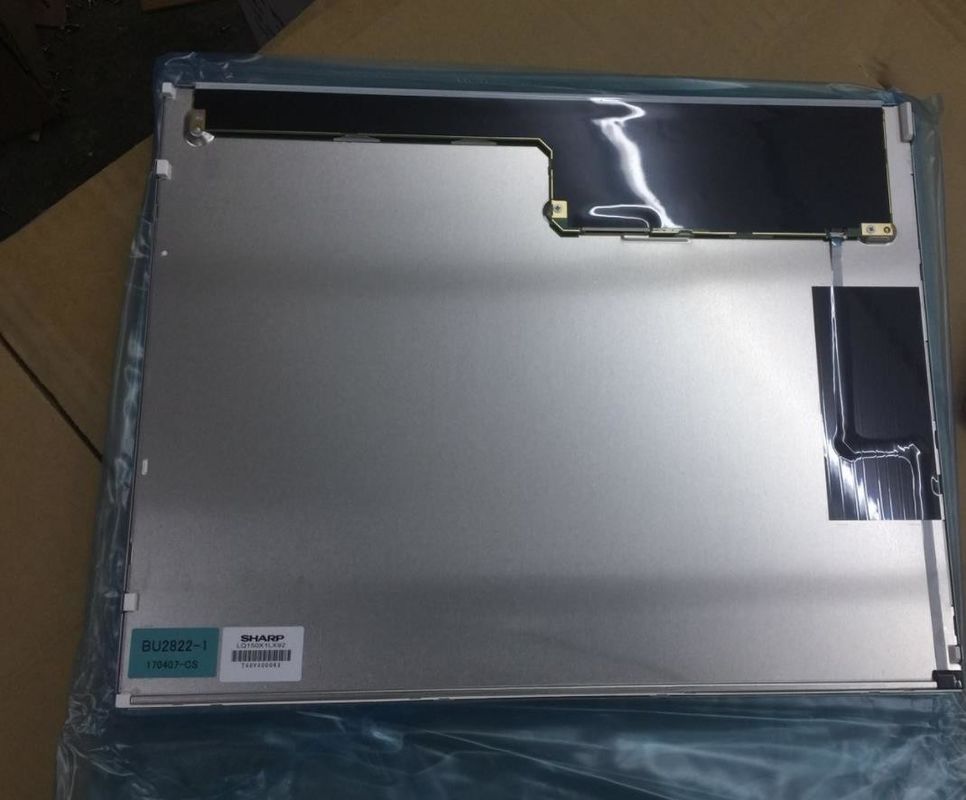

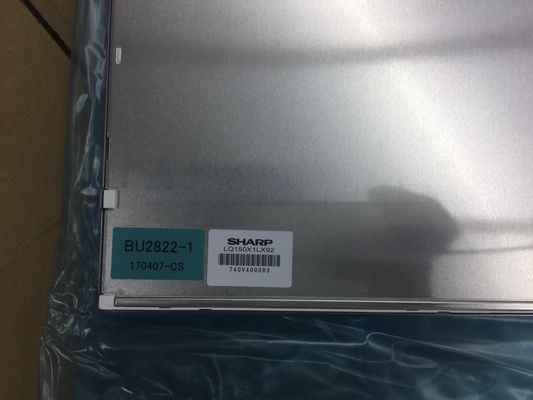

LQ150X1LX92 Sharp 15" LCM 1024×768RGB 270cd/m² INDUSTRIAL LCD DISPLAY

LQ150X1LX92 Sharp 15" LCM 1024×768RGB 270cd/m² INDUSTRIAL LCD DISPLAY
LQ150X1LX92 Sharp 15" LCM 1024×768RGB 270cd/m² INDUSTRIAL LCD DISPLAY LQ150X1LX92 Sharp 15" LCM 1024×768RGB 270cd/m² INDUSTRIAL LCD DISPLAY LQ150X1LX92 Sharp 15" LCM 1024×768RGB 270cd/m² INDUSTRIAL LCD DISPLAY LQ150X1LX92 Sharp 15" LCM 1024×768RGB 270cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LQ150X1LX92 Sharp 15" LCM 1024×768RGB 270cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Sharp
Certification: ISO9001
Model Number: LQ150X1LX92
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 pcs / box 10.5 Kgs 435×343×341 mm
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS
Contact Now

LQ150X1LX92 Sharp 15" LCM 1024×768RGB 270cd/m² INDUSTRIAL LCD DISPLAY

Description
Model: LQ150X1LX92 Brand: Sharp
Pixel Format: 1024(RGB)×768 [XGA] 85PPI Diagonal Size: 15INCH
Luminance: 270 Cd/m² (Typ.) Operating Mode: ASV, Normally Black, Transmissive
Light Source: WLED , 70K Hours , With LED Driver Interface Type: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector
Environment: Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -25 ~ 65 °C
Highlight:

XGA Industrial LCD Panel

,

SVGA Sharp TFT LCD Screen

LQ150 Series LQ150X1LX92 LQ150X1LX91 LQ150X1LX88



Sharp LQ150X1LX92 Mechanical Details

Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.099×0.297 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :
Display Area
304.128×228.096 mm (H×V)
Bezel Area
307.4×231.3 mm (H×V)
Outline Dim.
326.5×253.5 mm (H×V)
Outline Depth
9.6±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
950g (Max.)
Surface
Antiglare (Haze 3%), Hard coating (3H)





Sharp LQ150X1LX92 Optical Details

Basic Information :
Brightness
270 cd/m² (Typ.)
Contrast Ratio
1500:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
ASV, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
35 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.305; Wy:0.320
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
7037K
Uniformity
1.33 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
70%
sRGB
91% coverage
Adobe RGB
73% coverage
DCI-P3
73% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ150X1LX92 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
70K(Typ.) (Hours)
Replacement
Replaceable
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
SM06B-SHLS-TF
1.0 mm
6 pins
1 pcs

Driver Electrical :
Voltage Input
12.0V (Typ.)
Current Input
0.73/1.1A (Typ./Max.)





Sharp LQ150X1LX92 Interface Detail

Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
380/500mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF14H-20P-1.25H
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010G





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
