15" LCM 1024×768RGB 500cd/m² LQ150X1LX96 Sharp TFT LCD Display

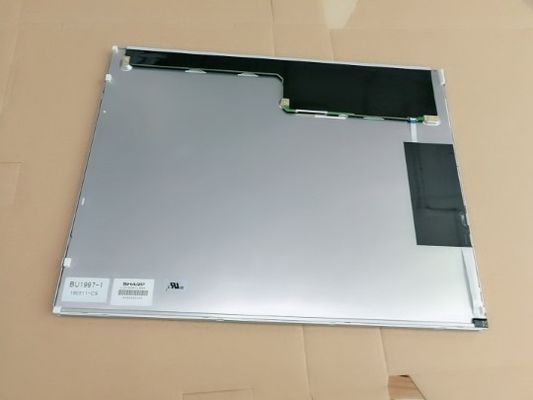

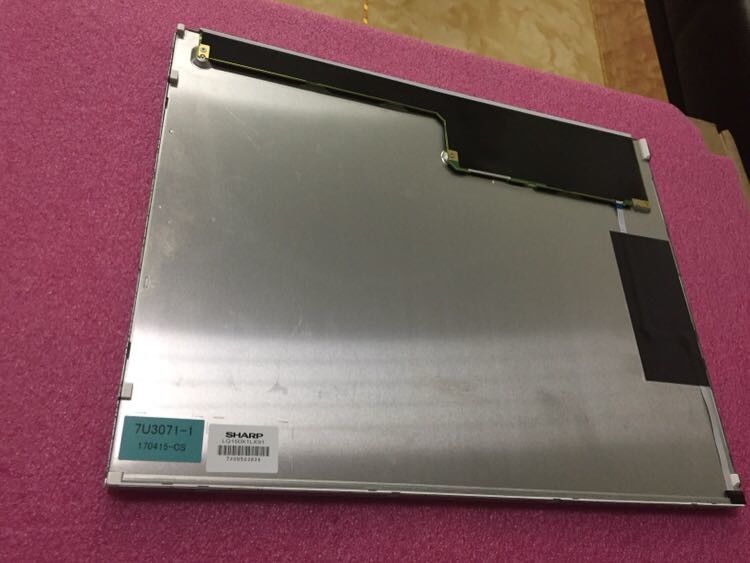

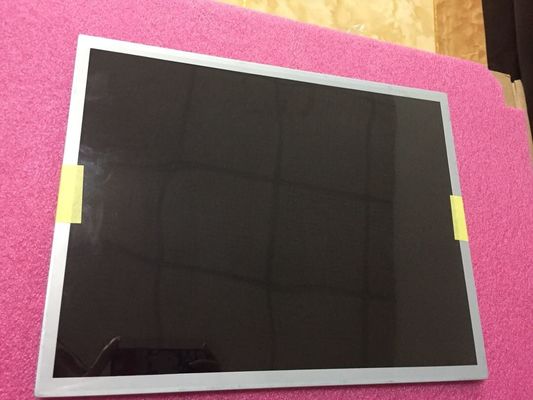

Large Image : 15" LCM 1024×768RGB 500cd/m² LQ150X1LX96 Sharp TFT LCD Display

Product Details:

Place of Origin:	JAPAN
Brand Name:	Sharp
Certification:	ISO9001
Model Number:	LQ150X1LX96

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	10 pcs / box 10.5 Kgs 435×343×341 mm
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	300PCS

Contact Now

15" LCM 1024×768RGB 500cd/m² LQ150X1LX96 Sharp TFT LCD Display

Description

Diagonal:	15.0 Inch	Model:	LQ150X1LX96
Brand:	Sharp	Type:	A-Si TFT-LCD , LCM
Pixel Format:	1024(RGB)×768 [XGA] 85PPI	Luminance:	500 Cd/m² (Typ.)
Viewing Angle:	85/85/85/85 (Typ.)(CR≥10)	Light Source:	WLED , 70K Hours , With LED Driver
Interface Type:	LVDS (1 Ch, 6/8-bit) , 20 Pins Connector	Environment:	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C
High Light:	XGA Industrial LCD Panel , SVGA Sharp TFT LCD Screen

LQ150 Series LQ150X1LX9A LQ150X1LX96 LQ150X1LX95

Sharp LQ150X1LX96 Mechanical Details

Pixel Features :	Pixel Format 1024(RGB)×768, XGA Dot Pitch 0.099×0.297 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :	Display Area 304.128×228.096 mm (H×V) Bezel Area 307.4×231.3 mm (H×V) Outline Dim. 326.5×253.5 mm (H×V) Outline Depth 9.6±0.5 mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight 950g (Max.) Surface Antiglare (Haze 3%), Hard coating (3H)

Sharp LQ150X1LX96 Optical Details

Basic Information :	Brightness 500 cd/m² (Typ.) Contrast Ratio 1500:1 (Typ.) (Transmissive) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Optical Mode ASV, Normally Black, Transmissive Viewing Direction Symmetry Response Time 35 (Typ.)(Tr+Td) ms
Color Performance :	Chromaticity Wx:0.305; Wy:0.320 Color Numbers 262K/16.2M (6-bit / 6-bit + FRC) Color Temperature 7037K Uniformity 1.33 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 70% sRGB 91% coverage Adobe RGB 73% coverage DCI-P3 73% coverage Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LQ150X1LX96 Backlight Details

Back-light Features :	Lamp Type WLED Amount - Life Time 70K(Typ.) (Hours) Replacement - Lamp Shape - Position Edge light type
Interface Features :	Type Connector Position - Lamp Driver With LED Driver
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JST SM06B-SHLS-TF 1.0 mm 6 pins 1 pcs
Driver Electrical :	Voltage Input 12.0±1.8V Current Input 0.73/1.1A (Typ./Max.)

Sharp LQ150X1LX96 Interface Detail

Signal Systerm :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3V (Typ.) Current Input 380/500mA (Typ./Max.)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration HRS DF14H-20P-1.25H 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-010G

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
