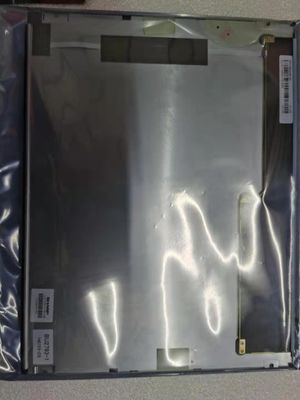

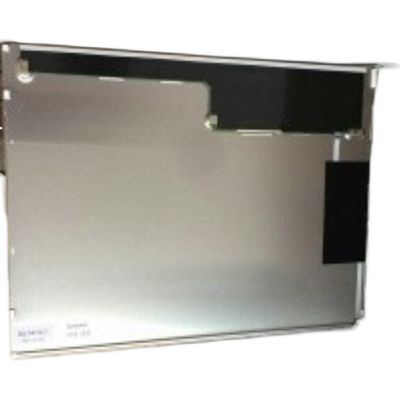

Product Details:
|
| Panel Size: | 15.0" | Panel Model: | LQ150X1LX9A |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Panel Type: | A-Si TFT-LCD , LCM |
| Brightness: | 400 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Surface: | Antiglare (Haze 3%), Hard Coating (3H) | Lamp Type: | WLED , 70K Hours , With LED Driver |
| Signal Interface: | LVDS (1 Ch, 8-bit) , 20 Pins Connector | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -25 ~ 70 °C |
| High Light: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
LQ150 Series LQ150X1LX9A LQ150X1LX96 LQ150X1LX95
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ150X1LX9A | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -25 ~ 70 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ASV, Normally Black, Transmissive | 1500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7274K | 16.2M (6-bit + FRC) | X:0.300; Y:0.325 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 70% | 91% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(5 points) | ||
| Panel Size : | 15.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.297×0.297 [85PPI] | 0.099×0.297 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 304.128(H) × 228.096(V) | 307.4(H) × 231.3(V) | 326.5(H) × 253.5(V) | 9.6±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 950g (Max.) | - | Antiglare (Haze 3%), Hard coating (3H) | ||
| Reverse Scan : | Yes (180°) |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 70K(Typ.) | Replaceable | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM06B-SHLS-TF | 1.0 mm | 6 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0V (Typ.) | 0.73/1.1A (Typ./Max.) | - | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 380/500mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF14H-20P-1.25H | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010G | |
LQ150X1LX9A supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10.1(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare (Haze 3%), Hard coating (3H), net weight of 950g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ150X1LX9A can provides 400 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. LQ150X1LX9A utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
