Product Details:
|

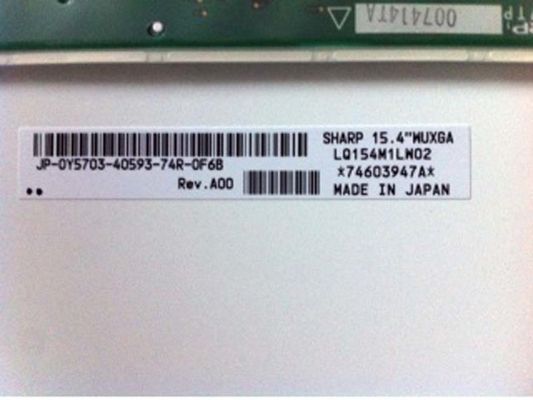

| Pixel Format: | 1920(RGB)×1200 | Model: | LQ154M1LW02 |
|---|---|---|---|
| Diagonal Size: | 15.4 Inch | Luminance: | 200 Cd/m² (Typ.) |
| Viewing Angle: | 70/70/50/60 (Typ.)(CR≥10) | Light Source: | CCFL [1 Pcs] , 10K Hours , With Inverter |
| Interface Type: | LVDS (2 Ch, 6-bit) , 30 Pins Connector | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
| Highlight: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
| Basic Detail : | Manufacturer | SHARP | Model Name | LQ154M1LW02 1 Compatible |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | SHP139F | |
| Panel Size | 15.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -25 ~ 60 °C |
| Vibration Level | 1.0G (9.8 m/s²) | RoHS | - |
| Basic Information : | Luminance | 200 cd/m² (Typ.) | Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 10/25 (Max.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.45 (Max.)(5 points) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1200 [WUXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0575×0.1725 mm | Pixel Pitch(W×H) | 0.1725×0.1725 mm [147PPI] | |
| Physical Size : | Active Viewing | 331.2(W)×207(H) mm | Overall Dim. | 344(W)×240(H) mm |
| Bezel Opening | - | Overall Depth | 6.5 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Wedge (PCBA Bent, T≥5.2mm) | |
| Fixation : | Side mounting holes (8-M2) on left, right bezel; Face mounting holes (6 pcs) on up, down slugs | |||
| Other Detail : | Mass | 650g (Max.) | Surface | Antiglare, Hard coating (2H), Reflection 1.7% (Max.) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Signal Electrical : | Input Current | 720mA (Typ.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (2 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-XB30SL-HF10 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C6B-020C | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 10K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HONDA | LVC-D20SFYG | 1 pcs | 0.5 mm | 20 pins | ||
| Backlight Driver : | With Inverter | |||||
| Driver Electrical : | Input Current | - | Input Voltage | 9.0/21.0V (Min./Max.) | ||

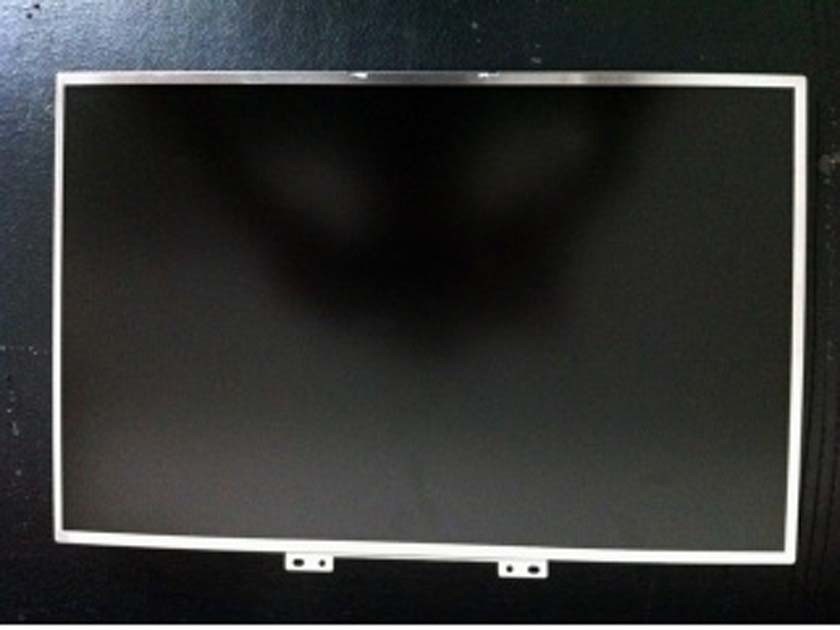

LQ154M1LW02 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 331.2(W)×207(H) mm, outline size of 344(W)×240(H)×6.5(D) mm, with surface treament of Antiglare, Hard coating (2H), Reflection 1.7% (Max.), net weight of 650g (Max.), shape stype of Wedge (PCBA Bent, T≥5.2mm). As a TN, Normally White, Transmissive LCM product, LQ154M1LW02 can provides 200 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.
