15.6" LCM 3840×2160RGB  330cd/m² LQ156D1JW04 Sharp TFT LCD Display

15.6" LCM 3840×2160RGB  330cd/m² LQ156D1JW04 Sharp TFT LCD Display

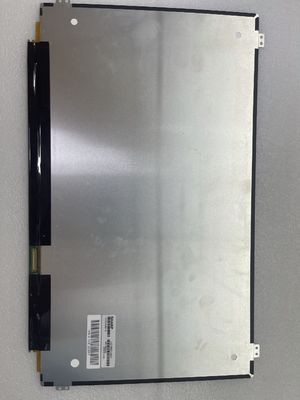

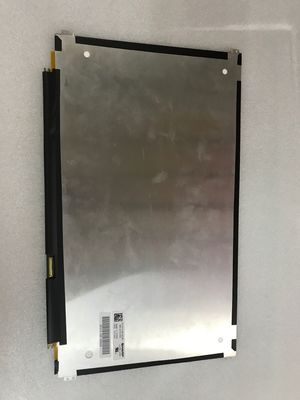

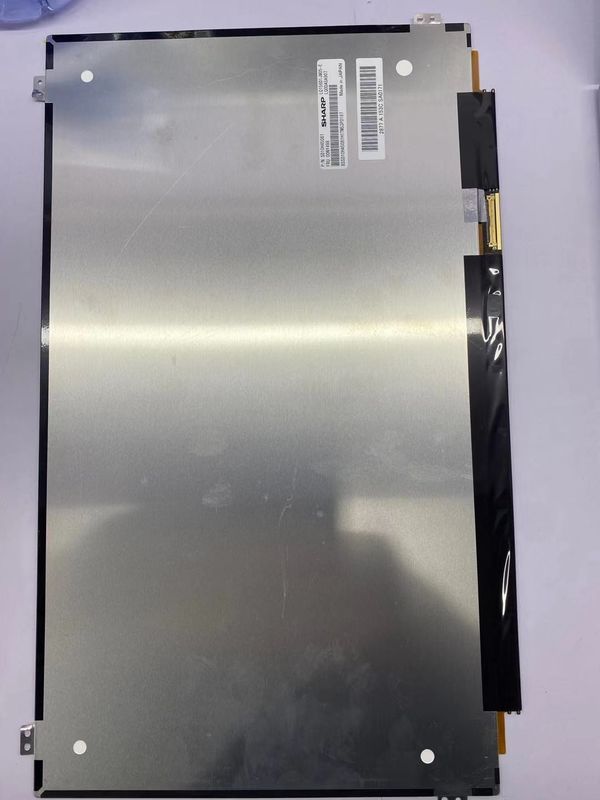

15.6" LCM 3840×2160RGB  330cd/m² LQ156D1JW04 Sharp TFT LCD Display 15.6" LCM 3840×2160RGB  330cd/m² LQ156D1JW04 Sharp TFT LCD Display 15.6" LCM 3840×2160RGB  330cd/m² LQ156D1JW04 Sharp TFT LCD Display

Large Image :  15.6" LCM 3840×2160RGB  330cd/m² LQ156D1JW04 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ156D1JW04
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 1000PCS
Contact Now

15.6" LCM 3840×2160RGB  330cd/m² LQ156D1JW04 Sharp TFT LCD Display

Description
Model: LQ156D1JW04 Luminance: 330cd/m²
Diagonal Size: 15.6" Pixel Format: 3840(RGB)×2160 [UHD] 282PPI
Touch Panel: Without Light Source: WLED , 10K Hours , With LED Driver
Interface Type: EDP (4 Lanes) 40 Pins Connector Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

XGA Industrial LCD Panel

,

SVGA Sharp TFT LCD Screen

LQ156 Series LQ156D1JW05 LQ156D1JW04 LQ156D1JW02



Sharp LQ156D1JW04 Application Details

Basic Information :
Brand
SHARP
LQ156D1JW04Model
Type
Oxide TFT-LCD , LCM
Used For

15.6 inchScreen Size
Alias
SHP1436
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

1.0G (9.8 m/s²)Vibration





Sharp LQ156D1JW04 Mechanical Details

Pixel Features :
Resolution
3840(RGB)×2160, UHD
Dot Pitch(mm)
0.030×0.090 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.090×0.090 (H×V) [282PPI]
Mechanical Size :
Active Area(mm)
345.6(H) × 194.4(V)
Bezel Area(mm)
-
Outline Dim.(mm)
367.98(H) × 218.31(V)
Depth(mm)
2.75/3.14 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (8-Φ2.4) on left, right slugs
Other Spec :
Weight
320/345g (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)





Sharp LQ156D1JW04 Optical Details

Basic Information :
Luminance(cd/m²)
330 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
100% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Sharp LQ156D1JW04 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No
Total Consumption:
5.6W (Typ.)



Sharp LQ156D1JW04 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
498/1234mA (Typ./Max.)
Consumption
1.64/3.7W (Typ./Max.)
Signal Type :
eDP (4 Lanes)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20525-040E-02
0.4 mm
40 pins
1 pcs






Sharp LQ156D1JW04 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
10K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
7.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
325/359mA (Typ./Max.)
Consumption
3.96W (Typ.)
