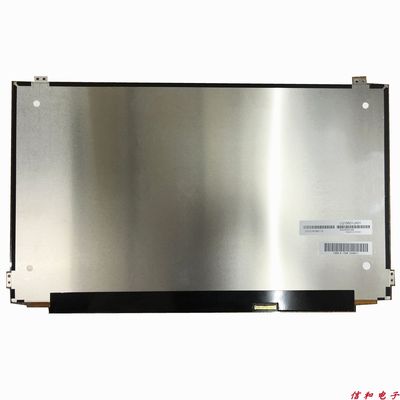

Product Details:
|
| Panel Size: | 15.6" | Panel Model: | LQ156D1JX03 |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 3840(RGB)×2160, UHD, 282PPI |
| Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) | Lamp Type: | WLED |
| Signal Interface: | EDP | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Highlight: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
LQ156 Series LQ156D1JX03 LQ156D1JX01B LQ156D1JX01
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|

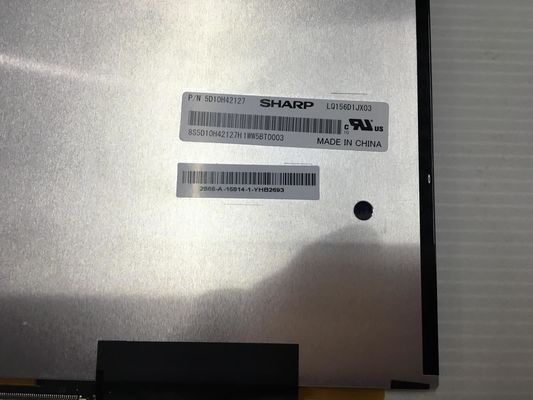

| SHARP | LQ156D1JX03 | Oxide TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| - | 88/88/88/88 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 16.7M (8-bit) | - |
| Panel Size : | 15.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.090×0.090 [282PPI] | 0.030×0.090 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 345.6(H) × 194.4(V) | - | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| TBD | - | - | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | - | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | Included in panel signal interface | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
