WXGA 294PPI 430cd/m2 Tianma LCD Display RGB 720×1280 TM050JDHG31

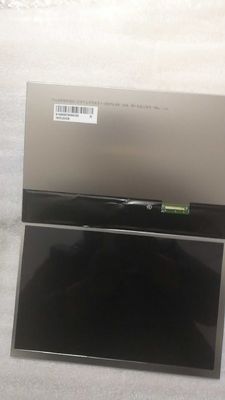

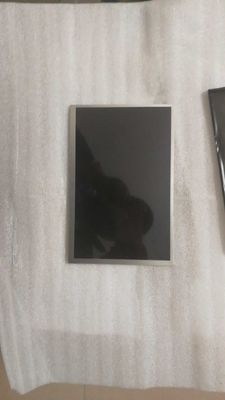

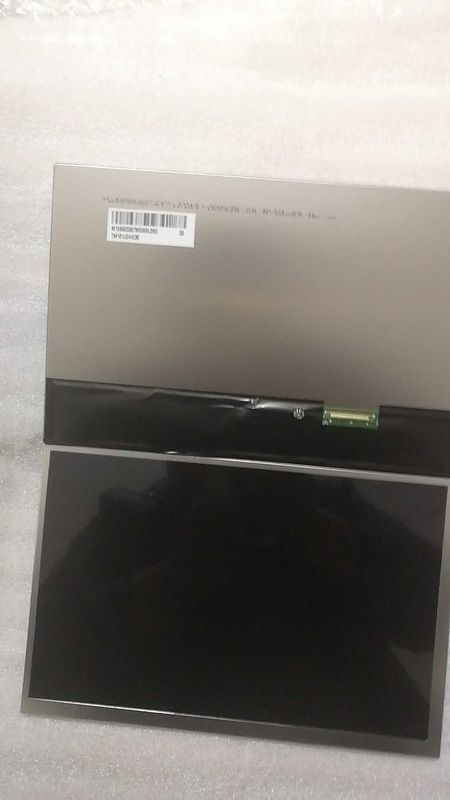

Large Image : WXGA 294PPI 430cd/m2 Tianma LCD Display RGB 720×1280 TM050JDHG31

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM050JDHG31

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	100PCS

Contact Now

WXGA 294PPI 430cd/m2 Tianma LCD Display RGB 720×1280 TM050JDHG31

Description

MODEL NUMBER:	TM050JDHG31	BRAND:	TIANMA
SIZE:	5.0 Inch	RESOLUTION:	720(RGB)×1280 (WXGA) 294PPI
BRIGHTNESS:	430 Cd/m² (Typ.)	Viewing Angle:	80/80/80/80 (Typ.)(CR≥10)
TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Highlight:	430cd/m2 Tianma LCD Display , WXGA 294PPI Tianma LCD Display , RGB 720×1280 Tianma Screen

TIANMA TM050JDHG31 Application Details

Basic Information :

Brand

Model

TM050JDHG31

Type

a-Si TFT-LCD , LCM

Used For

Screen Size

5.0 inch

Alias

Environment :

Storage Temp.

-30 ~ 80 °C

Operating Temp.

-20 ~ 70 °C

RoHS

Vibration

Typical Features :

TIANMA TM050JDHG31 Mechanical Details

Pixel Features :

Resolution

720(RGB)×1280, WXGA

Dot Pitch(mm)

0.02875×0.08625 (H×V)

Pixel Format

RGB Vertical Stripe

Pixel Pitch(mm)

0.08625×0.08625 (H×V) [294PPI]

Mechanical Size :

Active Area(mm)

62.1(H) × 110.4(V)

Bezel Area(mm)

Outline Dim.(mm)

65.4(H) × 118.9(V)

Depth(mm)

1.45±0.1

Outline Features :

Form Style

Flat Rectangle

Shape Style

Aspect Ratio

9:16 (H:V)

Orientation

Portrait type

Other Spec :

Weight

TBD

Treatment

Hard coating

TIANMA TM050JDHG31 Optical Details

Basic Information :

Luminance(cd/m²)

430 (Typ.)

Contrast Ratio

800:1 (Typ.) (Transmissive)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Display Mode

SFT, Normally Black, Transmissive

Best View on

Symmetry

Response(ms)

35 (Typ.)(Tr+Td)

Color Performance :

White Coordinate

Wx:0.290; Wy:0.300

Display Colors

16.7M (8-bit)

Color Temperature

8558K

White Uniformity

1.25/1.33 (Typ./Max.)(9 points)

1931 Color Gamlt :

NTSC Ratio

72%

sRGB

96% coverage

Adobe RGB

73% coverage

DCI-P3

74% coverage

Rec.2020

54% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM050JDHG31 Electronics Details

Frame Rate :

60Hz

Reverse Scan :

Driver IC :

COG Built-in ILI9881C

TIANMA TM050JDHG31 Interface Details

Signal Electrical :

Voltage Supply

1.8/5.0/-5.0V (Typ.)(IOVCC/VSP/VSN)

Current Supply

Signal Type :

MIPI (4 data lanes)

Logic Voltage

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

HRS

BM20B(0.8)-34DP-0.4V

0.4 mm

34 pins

1 pcs

TIANMA TM050JDHG31 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	144 pcs / box	TBD	544×365×250 mm (L×W×H

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

WXGA 294PPI 430cd/m2 Tianma LCD Display RGB 720×1280 TM050JDHG31 9

TIANMA TM050JDHG31 Backlight Details

Backlight Features :

Type

WLED

Quantity

6S2P

Position

Edge light type

Replacement

Shape

2 strings

Life Time

30K(Typ.) Hours

Lamp Electrical :

Voltage Supply

19.2V (Typ.)

Current Supply

20mA (Typ.)

Consumption

768/924mW (Typ./Max.) WXGA 294PPI 430cd/m2 Tianma LCD Display RGB 720×1280 TM050JDHG31 10

Interface Features :

Position

Type

Included in panel signal interface

Backlight Driver :
