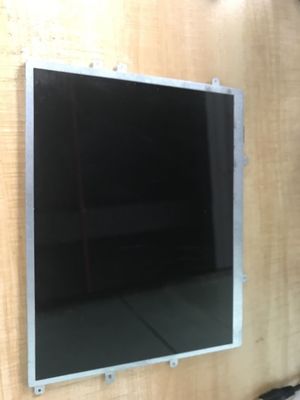

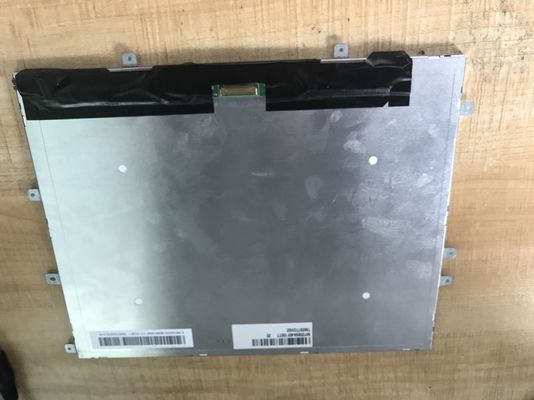

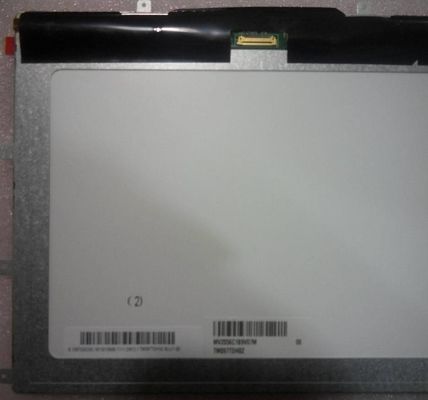

Product Details:
|
| MODEL NUMBER: | TM097TDH04 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 9.7 Inch | RESOLUTION: | 1024(RGB)×768, XGA, 132PPI |
| BRIGHTNESS: | 350CD/M2 | Viewing Angle: | 70/60/70/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| Highlight: | RGB 1024×768 Tianma LCD Display,350cd/m2 Tianma LCD Display,9.7" Tianma LCD Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM097TDH04 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Screen Size : | 9.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.064×0.192 mm | 0.192×0.192 mm [132PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 196.608×147.456 mm | 200.91×152.27 mm | 210.21×166.3 mm | 3.55/5.85 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 200g | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 3 o'clock | 70/60/70/70 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6720K | 262K (6-bit) | X:0.311; Y:0.316 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 70% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Typ.)(9 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 30K(Typ.) | 6S6P | 6 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 19.2V (Typ.) | 20mA (Typ.) | 2.3W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in signal interface | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
|---|---|---|---|---|---|---|
| I-PEX | 20455-030E-02 | 1 pcs | 30 pins | 0.5 mm | LVDS-30P1C6B-070B |
