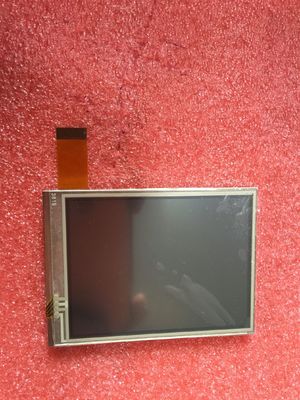

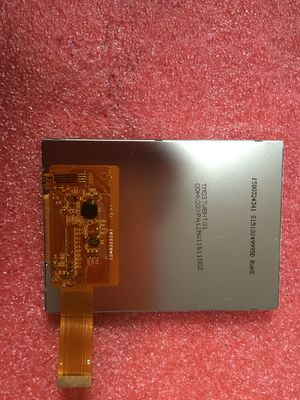

Product Details:
|
| MODEL NUMBER: | TM037WBHT01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.7 Inch | RESOLUTION: | 480(RGB)×640, VGA, 212PPI |
| BRIGHTNESS: | 155 Cd/m² (Typ. | Viewing Angle: | 50/55/45/55 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) | ||
| Highlight: | 480×640 RGB Tianma TFT,155cd/m2 Tianma TFT,VGA 212PPI Tianma Industrial Panel |
||
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
| Basic Info : | Panel Brand | Panel Model | TM037WBHT01 | |
|---|---|---|---|---|
| Diagonal Size | 3.7" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 480(RGB)×640 [VGA] | Dot Pitch | 0.039×0.117 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.117×0.117 mm (H×V) [212PPI] | |
| Mechanical Size : | Display Area | 58.16×75.88 mm (H×V) | Bezel Area | - |
| Outline Dim. | 65×89 mm (H×V) | Outline Depth | 4.3/6.0 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 3:4 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | Without controller | Touchscreen | 4-wire Resistive Touch | |
| Other Features : | Weight | 47.0g (Typ.) | Surface | Hard coating |
| Basic Information : | Brightness | 155 cd/m² (Typ.) | Contrast Ratio | 150:1 (Typ.) (Transmissive) 8:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 50/55/45/55 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transflective | |
| Viewing Direction | 6 o'clock | Response Time | 30 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 33% | sRGB | 46% coverage |
| Adobe RGB | 34% coverage | DCI-P3 | 34% coverage | |
| Rec.2020 | 25% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| 3D Type | - | Reflectance | 4.0% (Typ.) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| D-IC Detail : | COG Suggest HX8379-C |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 18.6/20.4V (Typ./Max.) | Current Input | 10mA (Typ.) | ||
| Consumption | 186mW (Typ.) | |||||
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | No |
