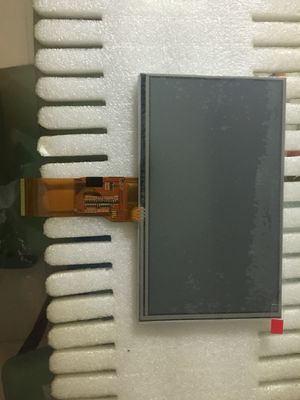

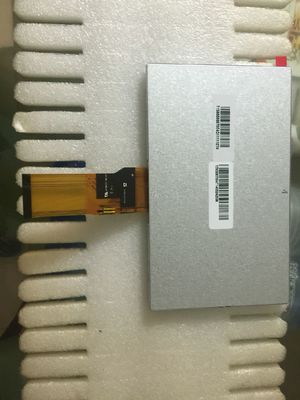

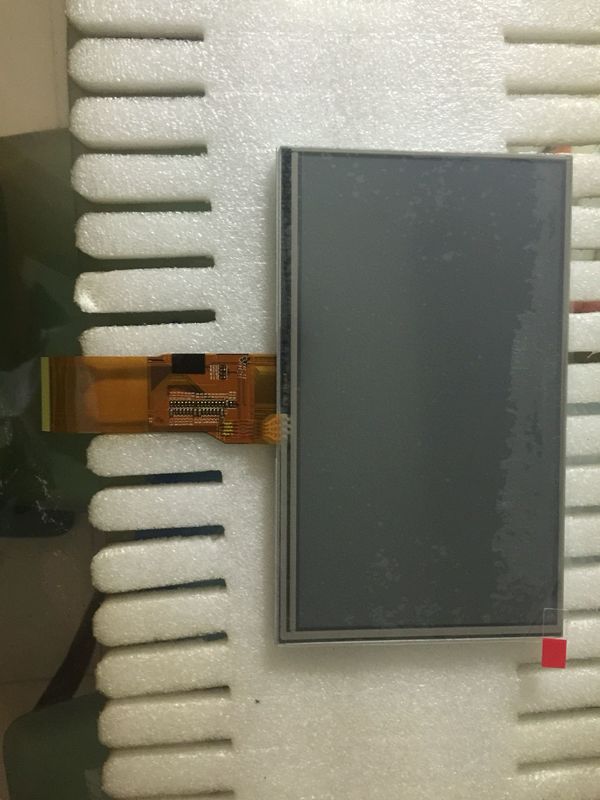

Product Details:
|
| MODEL NUMBER: | TM070RDHG23-40 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.0"inch | RESOLUTION: | 800(RGB)×480, WVGA, 134PPI |
| BRIGHTNESS: | 1400 Cd/m² (Typ. | Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | 800×480 RGB Tianma TFT Panel,1400cd/M2 Tianma TFT Panel,7.0 Inch Tianma LCD Display |
||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 50 pcs / box | 7.5±0.38 Kgs | 530×350×250 mm (L×W×H) |
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6S5P | Life Time | 40K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 19.2/20.4V (Typ./Max.) | Current Supply | 150mA (Max.) | ||
| Consumption | 2.88W (Typ.)  |
|||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Signal Electrical : | Voltage Supply | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 8-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | ||||
| Frame Rate : | 60Hz Reverse Scan :
| Yes (U/D, L/R) |
|---|---|---|
| Driver IC : | COG Suggest HX8264 + HX8664 | |
| Time Controller (T-CON) : | Embedded T-CON |
| Basic Information : | Luminance(cd/m²) | 1400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.315; Y:0.346 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6268K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
|
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 72% coverage |
| Adobe RGB | 55% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.0642×0.1790 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1926×0.1790 (H×V) [134PPI] | |
| Mechanical Size : | Active Area(mm) | 154.08(H) × 85.92(V) | Bezel Area(mm) | 157.08(H) × 89.39(V) |
| Outline Dim.(mm) | 165(H) × 100(V) | Depth(mm) | 5.7±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 150g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Brand | |
Model | TM070RDHG23-40 |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 7.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | |
Vibration | - | |
| Typical Features : |
|
|||
