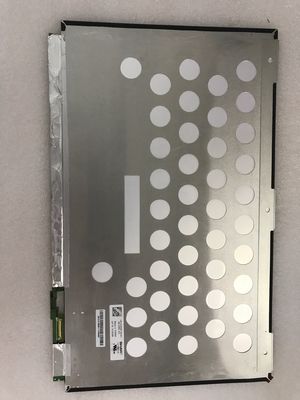

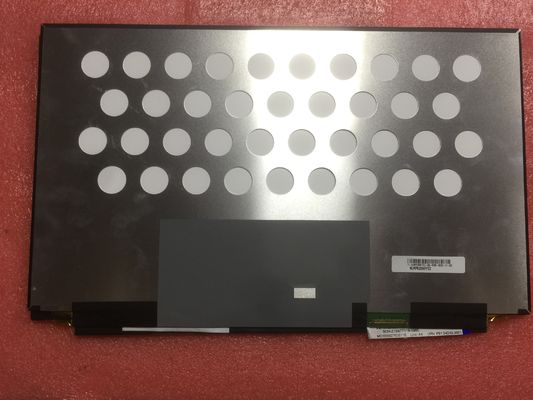

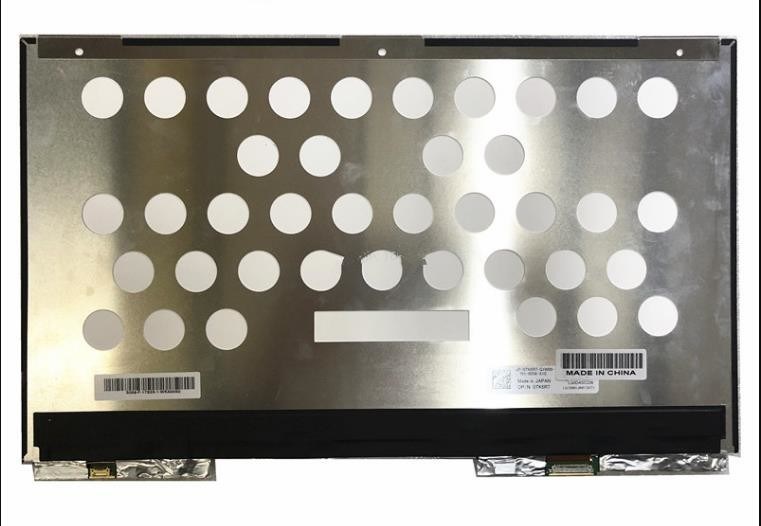

Product Details:
|
| Panel Size: | 15.6" | Panel Brand: | Sharp |
|---|---|---|---|
| Panel Model: | LQ156M1JW01 | Resolution: | 1920(RGB)×1080, FHD, 141PPI |
| Brightness: | 300 Cd/m² (Typ.) | Lamp Type: | WLED , 15K Hours , With LED Driver |
| Signal Interface: | EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins Connector | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
| Highlight: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
LQ156 Series LQ156M1LG21 LQ156M1JW41 LQ156M1JW31 LQ156M1JW03 LQ156M1JW01
| Basic Information : | Brand | SHARP | Model | LQ156M1JW01 |
|---|---|---|---|---|
| Type | LCM Oxide TFT-LCD | Used For | ||
| Screen Size | 15.6" | Alias | SHP14C3 | |
| Environment : | Storage Temp. | -25 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.0G (9.8 m/s²) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | New Mode2, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.05975×0.17925 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.17925×0.17925 (H×V) [141PPI] | |
| Mechanical Size : | Active Area(mm) | 344.16(H) × 193.59(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 350.66(H) × 215.54(V) | Depth(mm) | 2.4/2.6 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 310g (Max.) | Treatment | Antiglare, Hard coating (2H) |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 221/242mA (Typ./Max.) | ||
| Consumption | 2.66/2.90W (Typ./Max.) | |||||
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 101/135mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.34/0.45W (Typ./Max.) | |||||
| Signal Type : | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSAK24025P30 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020A | |
LQ156M1JW01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×215.54(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 310g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a New Mode2, Normally Black, Transmissive LCM product, LQ156M1JW01 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ156M1JW01 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
