Product Details:
|
| MODEL NUMBER: | TM090DDSG01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 9.0"inch | RESOLUTION: | 1024(RGB)×600 (WSVGA) 132PPI |
| BRIGHTNESS: | 500 Cd/m² (Typ.) | Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | 500cd/m2 Tianma Industrial Panel,1024×600 RGB Tianma Industrial Panel,9.0in Tianma LCD Display |
||
| Basic Detail : | Manufacturer |  |
Model Name | TM090DDSG01 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 9.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS | |
|
| Features : |
|
|||
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.304; Wy:0.335 | Support Color | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6914K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
|
| 1931 Color Gamlt : | NTSC Ratio | 56% | sRGB | 76% coverage |
| Adobe RGB | 59% coverage | DCI-P3 | 58% coverage | |
| Rec.2020 | 42% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1024(RGB)×600 [WSVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.064×0.19025 mm | Pixel Pitch(W×H) | 0.192×0.19025 mm [132PPI] | |
| Physical Size : | Active Viewing | 196.608(W)×114.15(H) mm | Overall Dim. | 211.1(W)×126.5(H) mm |
| Bezel Opening | 200.01(W)×117.55(H) mm | Overall Depth | 5.7±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 17:10 | Shape Style | ||
| Other Detail : | Mass | TBD | Surface | Antiglare |
| Refresh Rate : | 60Hz Reverse Scan :
| Yes (U/D, L/R) |
|---|
| Signal Electrical : | Input Current | - | Input Voltage | 3.3/10.6/23/-7V (Typ.)(VDD/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||

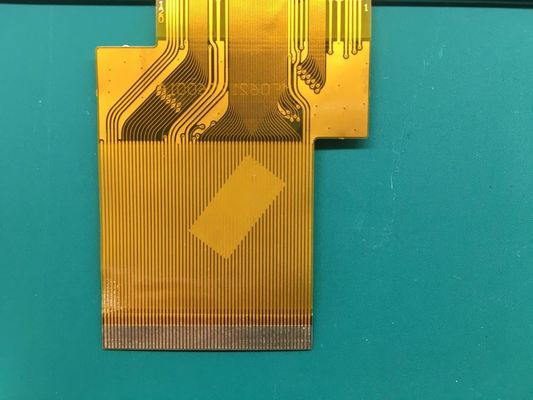

| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | ||||
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3S10P | Life | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 300mA (Typ.) | Input Voltage | 9.6V (Typ.) | ||
| Consumption | 2.88W (Typ.) |
|||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 50 pcs / box | 530×350×288 mm | TBD |
