800×600RGB 250nits TIANMA LCD Panel TM080SDH03 TIANMA 8.0"

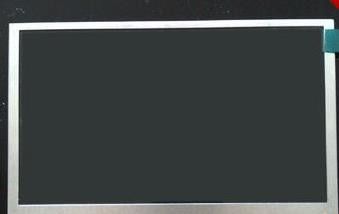

Large Image : 800×600RGB 250nits TIANMA LCD Panel TM080SDH03 TIANMA 8.0"

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM080SDH03

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	100PCS

Contact Now

800×600RGB 250nits TIANMA LCD Panel TM080SDH03 TIANMA 8.0"

Description

MODEL NUMBER:	TM080SDH03	BRAND:	TIANMA
SIZE:	8.0INCH	RESOLUTION:	800(RGB)×600 (SVGA) 125PPI
BRIGHTNESS:	250 Cd/m² (Typ.)	Viewing Angle:	70/70/50/70 (Typ.)(CR≥10
TEMPERATURE RANGE:	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
High Light:	800×600RGB TIANMA LCD Panel , 250nits TIANMA LCD Panel , 8.0" TIANMA Display

TIANMA TM080SDH03 Application Details

Basic Information :	Brand Model TM080SDH03 Type a-Si TFT-LCD , LCM Used For Screen Size 8.0 inch Alias -
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS Vibration -
Typical Features :
Remarks :	DE/SYNC mode selectable

TIANMA TM080SDH03 Mechanical Details

Pixel Features :	Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.0675×0.2025 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2025×0.2025 (H×V) [125PPI]
Mechanical Size :	Active Area(mm) 162(H) × 121.5(V) Bezel Area(mm) 164.8(H) × 124.3(V) Outline Dim.(mm) 183(H) × 141(V) Depth(mm) 3.5±0.3
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Other Spec :	Weight 190g Treatment Antiglare

TIANMA TM080SDH03 Optical Details

Basic Information :	Luminance(cd/m²) 250 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 12 o'clock Response(ms) 25 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.310; Wy:0.330 Display Colors 262K/16.7M (6-bit / 6-bit + Dithering) Color Temperature 6638K White Uniformity 1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 50% sRGB 70% coverage Adobe RGB 52% coverage DCI-P3 52% coverage Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM080SDH03 Electronics Details

Frame Rate :	60Hz Reverse Scan :	Yes (U/D, L/R)
Time Controller (T-CON) :	Embedded T-CON

TIANMA TM080SDH03 Interface Detail

Signal Electrical :	Voltage Supply 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) Current Supply 3.39/17.75/0.28/0.29mA (Typ.)(ICC/AIDD/IGH/IGL)
Signal Type :	Parallel RGB (1 ch, 6/8-bit) Logic Voltage -
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration 0.5 mm 50 pins 1 pcs DRGB-50P1C8B-105A

TIANMA TM080SDH03 Backlight Details

Backlight Features :	Type WLED Quantity 3S8P Position Edge light type Replacement - Shape Array Life Time 20K(Min.) (Hours)
Lamp Electrical :	Voltage Supply 8.0/9.3/10.5V (Min./Typ./Max.) Current Supply 160mA (Typ.) Consumption 1.49/2.1W (Typ./Max.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration 1.25 mm 2 pins 1 pcs BLE-2PINS-AC
Backlight Driver :	No

TIANMA TM080SDH03 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	48 pcs / box	12.34±0.6 Kgs	544×365×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
