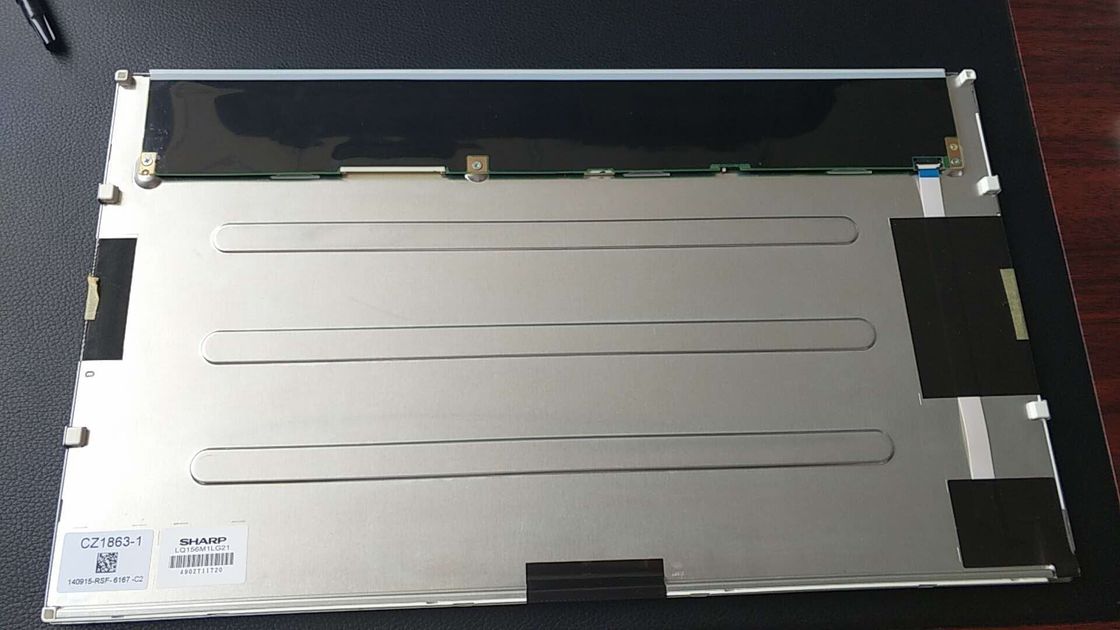

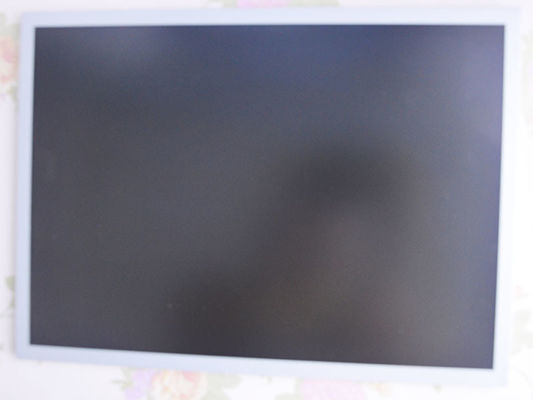

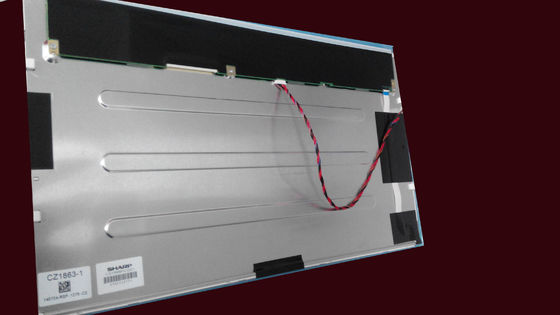

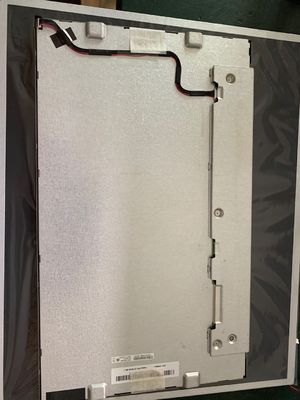

Product Details:
|
| Diagonal Size: | 15.6INCH | Model: | LQ156M1LG21 |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 141PPI | Viewing Angle: | 80/80/80/65 (Typ.)(CR≥10) |
| Luminance: | 600 Cd/m² (Typ.) | Light Source: | WLED , 50K Hours , With LED Driver |
| Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Environment: | Operating Temperature: 0 ~ 70 °C ; Storage Temperature: -30 ~ 70 °C |
| High Light: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
LQ156 Series LQ156M1LG21 LQ156M1JW41 LQ156M1JW31 LQ156M1JW03 LQ156M1JW01
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ156M1LG21 | a-Si TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 70 °C | -30 ~ 70 °C | - | ||
| Application : |
|
|||
| Screen Size : | 15.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.05975×0.17925 mm | 0.17925×0.17925 mm [141PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 344.16×193.59 mm | 349.0×198.4 mm | 370×217 mm | 5.5/9.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 950g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 80/80/80/65 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7351K | 16.7M (8-bit) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 76% | 96% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 79% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(5 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM10B-SHLS-TF | 1 pcs | 10 pins | 1.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0V (Typ.) | - | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 480/850mA (Typ./Max.) | 1.58W (Typ.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF14H-30P-1.25H(56) | 1 pcs | 30 pins | 1.25 mm | LVDS-30P2C8B-200A | |
