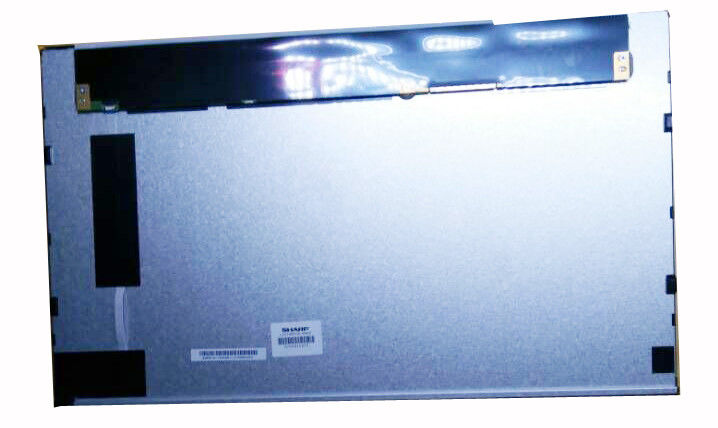

15.6" LCM 1920×1080RGB 400cd/m² LQ156M3LW01 Sharp TFT LCD Display

Large Image : 15.6" LCM 1920×1080RGB 400cd/m² LQ156M3LW01 Sharp TFT LCD Display

Product Details:

Place of Origin:	JAPAN
Brand Name:	SHARP
Certification:	ISO9001
Model Number:	LQ156M3LW01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

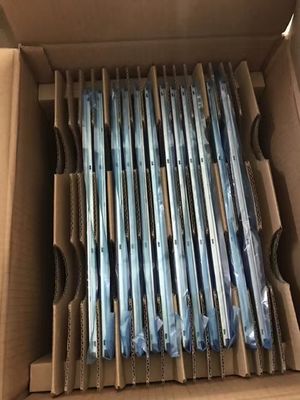

Packaging Details:	10 pcs / box 12.0 Kgs 468×363×296 mm (L×W×H)
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	200PCS

Contact Now

15.6" LCM 1920×1080RGB 400cd/m² LQ156M3LW01 Sharp TFT LCD Display

Description

Panel Size:	15.6"	Model:	LQ156M3LW01
Viewing Angle:	85/85/85/85 (Typ.)(CR≥10)	Resolution:	1920(RGB)×1080, FHD, 141PPI
Brightness:	400 Cd/m² (Typ.)	Lamp Type:	WLED , 70K Hours , With LED Driver
Signal Interface:	LVDS (2 Ch, 8-bit) , 30 Pins Connector	Environment:	Operating Temp.: -20 ~ 75 °C ; Storage Temp.: -20 ~ 80 °C
Highlight:	XGA Industrial LCD Panel , SVGA Sharp TFT LCD Screen

LQ156 Series LQ156T3LW03 LQ156T3LW02 LQ156M3LW01

Sharp LQ156M3LW01 Mechanical Details

Pixel Features :	Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.05975×0.17925 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :	Active Area(mm) 344.16(H) × 193.59(V) Bezel Area(mm) 347.54(H) × 196.83(V) Outline Dim.(mm) 363.8(H) × 215.9(V) Depth(mm) 10.8 (Typ.)
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 16:9 (H:V) Orientation Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight 950g (Typ.) Treatment Antiglare, Hard coating

Sharp LQ156M3LW01 Optical Details

Basic Information :	Luminance(cd/m²) 400 (Typ.) Contrast Ratio 1500:1 (Typ.) (Transmissive) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode IPS, Normally Black, Transmissive Best View on Symmetry Response(ms) 35 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.292; Wy:0.307 Display Colors 16.7M (8-bit) Color Temperature 8188K White Uniformity 1.33 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 75% sRGB 98% coverage Adobe RGB 78% coverage DCI-P3 78% coverage Rec.2020 56% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LQ156M3LW01 Interface Detail

Signal Electrical :	Voltage Supply 5.0V (Typ.) Current Supply 0.39/1.0A (Typ./Max.) Consumption 1.95W (Typ.)
Signal Type :	LVDS (2 ch, 8-bit) Logic Voltage -
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JAE FI-XB30SSRLA-HF16 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-200A

Sharp LQ156M3LW01 Backlight Details

Backlight Features :	Type WLED Quantity - Position Edge light type Replacement - Shape - Life Time 70K(Typ.) (Hours)
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST SM10B-SHLS-TF 1.0 mm 10 pins 1 pcs
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply 12.0V (Typ.) Current Supply 0.45/1.0A (Typ./Max.) Consumption 5.4W (Typ.)

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
