Product Details:
|

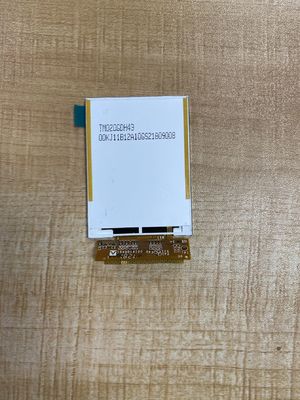

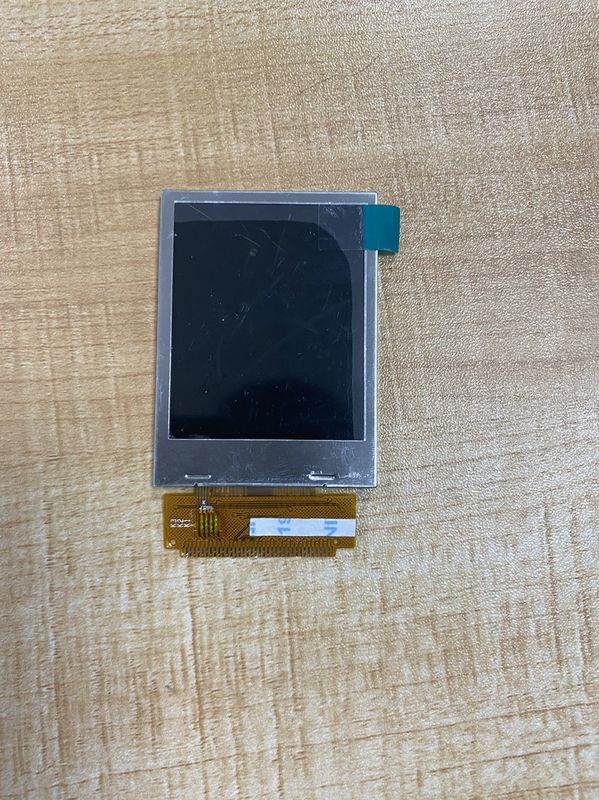

| MODEL NUMBER: | TM020GDH43 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 2.0"inch | RESOLUTION: | 176(RGB)×220, QCIF+, 141PPI |
| BRIGHTNESS: | 220CD/M2 | Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
| Basic Information : | Brand | Model | TM020GDH43 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 2.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| Pixel Features : | Resolution | 176(RGB)×220, QCIF+ | Dot Pitch(mm) | 0.060×0.180 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.180×0.180 (H×V) [141PPI] | |
| Mechanical Size : | Active Area(mm) | 31.68(H) × 39.6(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 38.03(H) × 51.65(V) | Depth(mm) | 2.5 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:5 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 8.10g | Treatment | Clear, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 220 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 20 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.284; Y:0.312 | Display Colors | 65K/262K |
| Color Temperature | 8684K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 63% | sRGB | 85% coverage |
| Adobe RGB | 66% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Driver IC : | Built-in HX8340-B |
|---|
| Signal Electrical : | Voltage Supply | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Consumption | 7.85/13.5mW (Typ./Max.) | |||||
| Signal Type : | 8/16-bit 8080 parallel | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 36 pins | 0.7 mm | ||||
| Backlight Features: | Shape | Parallel | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1S3P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 3.2V (Typ.) | Current Supply | 15mA (Typ.) | ||
| Consumption | 144mW (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | No | |||||
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Inner box | 72 | 1 | 345×260×70 | N/A | 0.0063 | |
| Outer box | 432 | 6 | 544×365×250 | 11.80 | 0.0496 | |
| Pallet | 12960 | 180 | N/A | N/A | N/A |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
