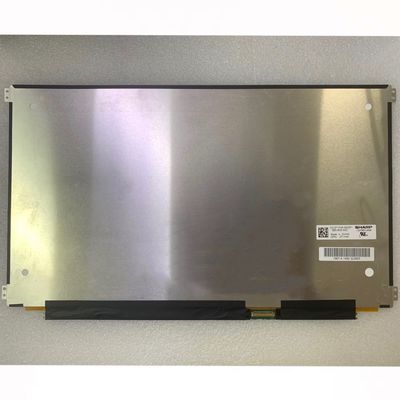

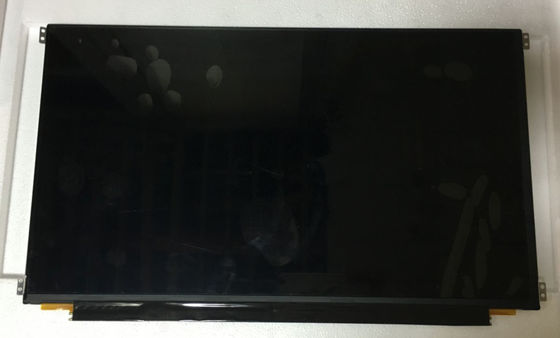

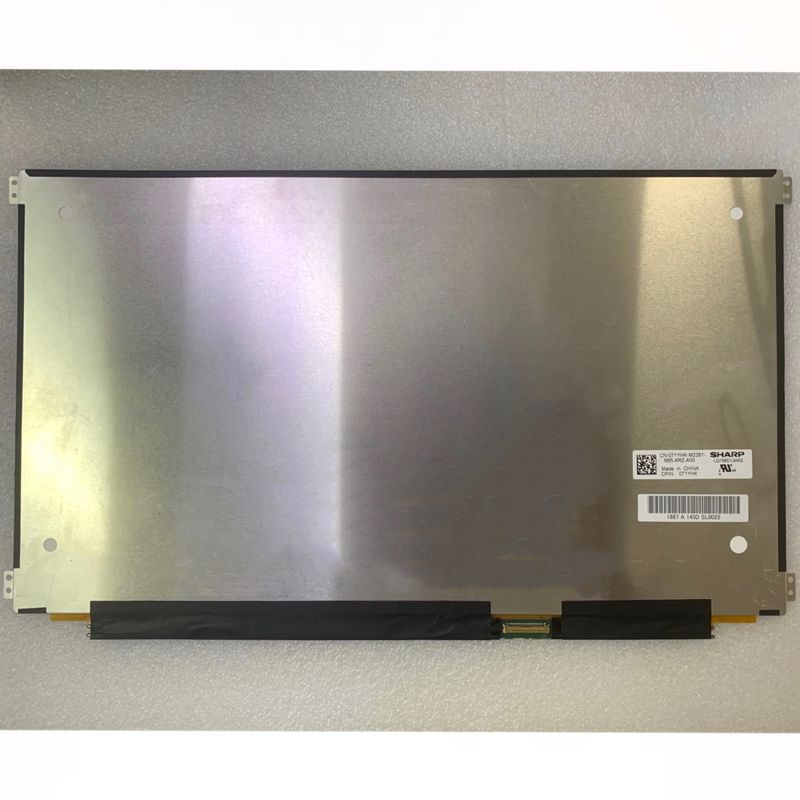

15.6" LCM 3200×1800RGB  300cd/m² LQ156Z1JW03B Sharp TFT LCD Display

15.6" LCM 3200×1800RGB  300cd/m² LQ156Z1JW03B Sharp TFT LCD Display
15.6" LCM 3200×1800RGB  300cd/m² LQ156Z1JW03B Sharp TFT LCD Display 15.6" LCM 3200×1800RGB  300cd/m² LQ156Z1JW03B Sharp TFT LCD Display 15.6" LCM 3200×1800RGB  300cd/m² LQ156Z1JW03B Sharp TFT LCD Display 15.6" LCM 3200×1800RGB  300cd/m² LQ156Z1JW03B Sharp TFT LCD Display

Large Image :  15.6" LCM 3200×1800RGB  300cd/m² LQ156Z1JW03B Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001

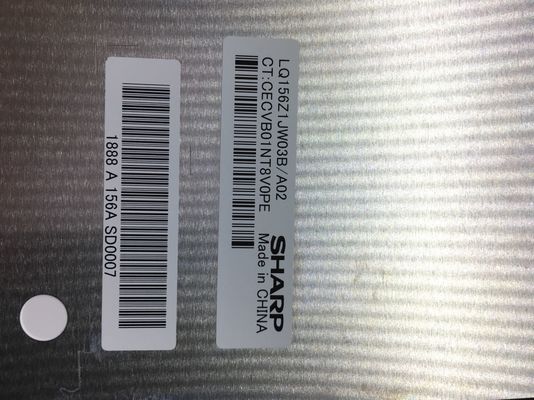

Model Number: LQ156Z1JW03B
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 20 pcs / box 14 Kgs 570×486×235 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 1000PCS
Contact Now

15.6" LCM 3200×1800RGB  300cd/m² LQ156Z1JW03B Sharp TFT LCD Display

Description
Panel Brand: Sharp Panel Model: LQ156Z1JW03B
Panel Size: 15.6" Brightness: 300 Cd/m² (Typ.)
Resolution: 3200(RGB)×1800, Quad-HD+, 235PPI Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Lamp Type: WLED , With LED Driver Signal Interface: EDP (4 Lanes) , 40 Pins Connector
Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Highlight:

XGA Industrial LCD Panel

,

SVGA Sharp TFT LCD Screen


LQ156 Series LQ156Z1JW03B LQ156Z1JW03 LQ156Z1JW02





Sharp LQ156Z1JW03B Application Details

Basic Info :
Panel Brand
SHARP
LQ156Z1JW03BPanel Model
Diagonal Size
15.6"
Application

Oxide TFT-LCD , LCMPanel Type
Model Alias
SHP141C
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

-Vibration Rating





Sharp LQ156Z1JW03B Mechanical Details

Pixel Features :
Pixel Format
3200(RGB)×1800, Quad-HD+
Dot Pitch
0.036×0.108 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.108×0.108 mm (H×V) [235PPI]
Mechanical Size :
Display Area
345.6×194.4 mm (H×V)
Bezel Area
-
Outline Dim.
367.98×218.21 mm (H×V)
Outline Depth
2.65±0.2 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Holes & Brackets :
Face mounting holes (8 pcs) on left, right slugs
Other Features :
Weight
310/352g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



Sharp LQ156Z1JW03B Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Optical Mode
New Mode, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (8-bit)
Color Temperature
6485K
Uniformity
1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
100% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Sharp LQ156Z1JW03B Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No



Sharp LQ156Z1JW03B Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
-
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
5.0/12.0/21.0V (Min./Typ./Max.)
Current Input
0.35/0.8A (Typ./Max.)





Sharp LQ156Z1JW03B Interface Detail

Signal Systerm :
eDP (4 Lanes)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
0.49/1.03A (Typ./Max.)
Interface Features :
Type
Connector
Position

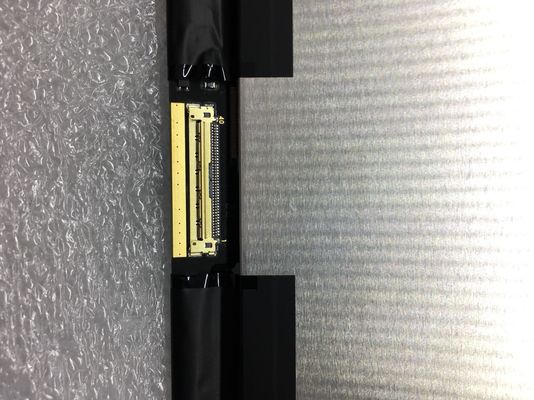

Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20525-040E-02
0.4 mm
40 pins
1 pcs






15.6" LCM 3200×1800RGB  300cd/m² LQ156Z1JW03B Sharp TFT LCD Display 0
