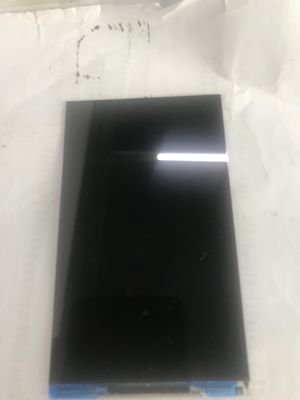

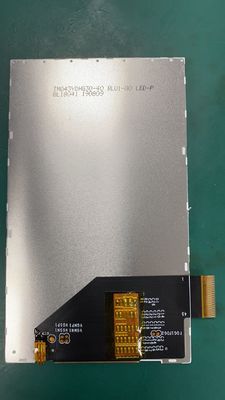

Product Details:
|
| MODEL NUMBER: | TM043YDHG30-41 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 4.3INCH | RESOLUTION: | 480(RGB)×800 [WVGA] 217PPI |
| BRIGHTNESS: | 450 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TM043YDHG30-41 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C | - | ||
| Designed For : |
|
|||
| Specific Features : |
|
|||
| Panel Size : | 4.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 480(RGB)×800, WVGA | RGB Vertical Stripe | 0.039×0.117 mm | 0.117×0.117 mm [217PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 56.16×93.6 mm | 57.16×94.6 mm | 61.96×104.5 mm | 1.9 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:5 (W : H) | Portrait type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Antireflection | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7291K | 16.7M (8-bit) | X:0.299; Y:0.328 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 62% | 87% | 65% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| D-IC Detail : | Built-in ILI9806C |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) | - | ||||
| Voltage for Display Signals : | -0.3≤VIL≤0.3IOVCC; 0.7IOVCC≤VIH≤IOVCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 8-bit) + SPI | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.3 mm | 45 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 8S1P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20mA (Typ.) | 25.6V (Typ.) | 512mW (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 180 pcs / box | 10.2±0.51 Kgs | 544×365×250 mm (L×W×H) |
