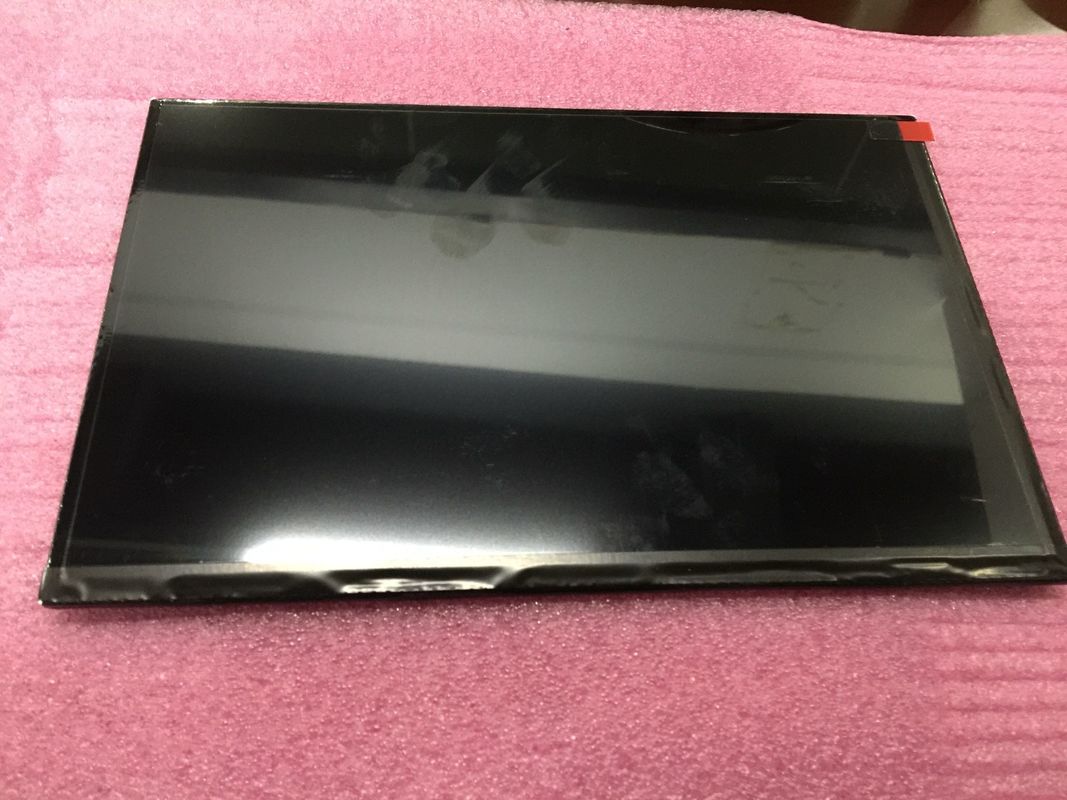

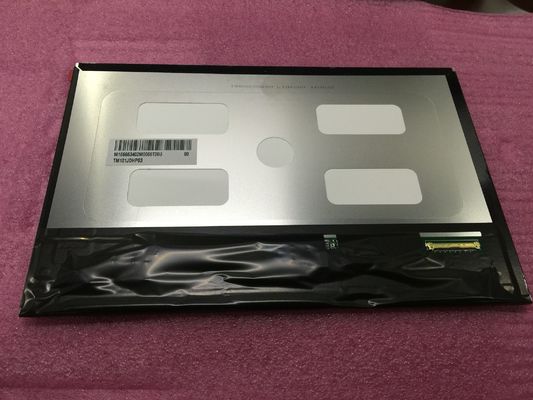

TM101JDHP03 TIANMA 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY

Large Image : TM101JDHP03 TIANMA 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM101JDHP03

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	300PCS

Contact Now

TM101JDHP03 TIANMA 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	TM101JDHP03	BRAND:	TIANMA
SIZE:	10.1INCH	RESOLUTION:	1280(RGB)×800 (WXGA) 149PPI
BRIGHTNESS:	400 Cd/m² (Typ.)	Viewing Angle:	85/85/85/85 (Typ.)(CR≥10)
TEMPERATURE RANGE:	Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C
High Light:	XGA Industrial LCD Panel , SVGA Sharp TFT LCD Screen

TIANMA TM101JDHP03 Application Details

Basic Information :	Brand Model TM101JDHP03 Type a-Si TFT-LCD , LCM Used For Screen Size 10.1 inch Alias -
Environment :	Storage Temp. -20 ~ 60 °C Operating Temp. -10 ~ 50 °C RoHS Vibration -
Typical Features :

TIANMA TM101JDHP03 Mechanical Details

Pixel Features :	Resolution 1280(RGB)×800, WXGA Dot Pitch(mm) 0.0565×0.1695 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.1695×0.1695 (H×V) [149PPI]
Mechanical Size :	Active Area(mm) 216.96(H) × 135.6(V) Bezel Area(mm) 217.96(H) × 136.6(V) Outline Dim.(mm) 229.46(H) × 149.1(V) Depth(mm) 2.57/4.7 (Typ./Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 16:10 (H:V) Orientation Landscape type
Mounting :	Without
Other Spec :	Weight 180g (Typ.) Treatment Hard coating

TIANMA TM101JDHP03 Optical Details

Basic Information :	Luminance(cd/m²) 400 (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode SFT, Normally Black, Transmissive Best View on Symmetry Response(ms) 25 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.300; Wy:0.324 Display Colors 262K/16.7M (6-bit / 8-bit) Color Temperature 7289K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 52% sRGB 73% coverage Adobe RGB 55% coverage DCI-P3 54% coverage Rec.2020 39% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM101JDHP03 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	No
Driver IC :	COG Built-in ST5821CA3 + ST5804CA1

TIANMA TM101JDHP03 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 1.1/1.37A (Typ./Max.)
Signal Type :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration I-PEX 20455-040E-66 0.5 mm 40 pins 1 pcs

ANMA TM101JDHP03 Backlight Details

Backlight Features :	Type WLED Quantity 3S11P Position Edge light type Replacement - Shape Array Life Time 30K(Typ.) (Hours)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply 5.0±0.5V Current Supply 0.6A (Max.) Consumption 3.0W (Max.)

TIANMA TM101JDHP03 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	42 pcs / box	TBD	544×365×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

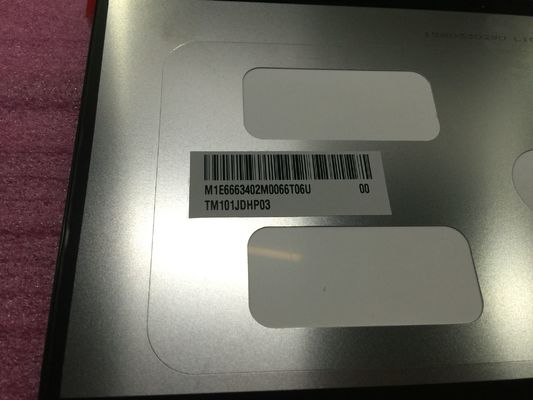

TM101JDHP03 TIANMA 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY 2
