Product Details:
|

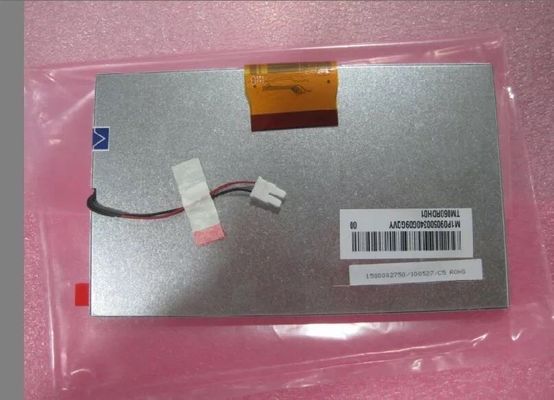

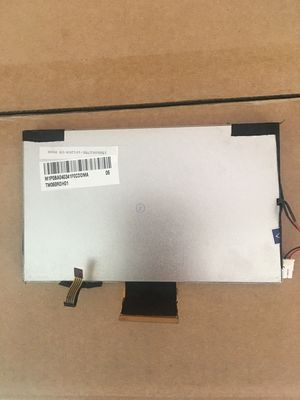

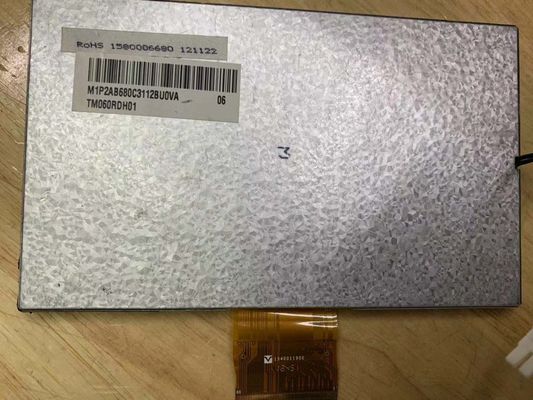

| MODEL NUMBER: | TM060RDH01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 6.0INCH | RESOLUTION: | 800(RGB)×480, WVGA, 155PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Detail : | Manufacturer | Model Name | TM060RDH01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 6.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS | ||
| Features : |
|
|||
| Remarks : | DE/SYNC Mode Selectable; Down side FPC | |||
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 20/30 (Typ./Max.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Color Temperature | 6914K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0555×0.1538 mm | Pixel Pitch(W×H) | 0.1665×0.1538 mm [155PPI] | |
| Physical Size : | Active Viewing | 133.2(W)×73.8(H) mm | Overall Dim. | 145.5(W)×87.8(H) mm |
| Bezel Opening | 136.4(W)×76.7(H) mm | Overall Depth | 5.4±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 113.3g | Surface | Antiglare |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 1.644W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Input Current | 5/25/0.4/0.4mA (Typ.)(ICC/IVDD/IGH/IGL) | Input Voltage | 3.3/9.84/19.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.3W (Typ.) | Signal Interface | Parallel RGB (1 ch, 6/8-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3S7P | Life | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 140/175mA (Typ./Max.) | Input Voltage | 9.6V (Typ.) | ||
| Consumption | 1.344/1.680W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 50 pcs / box | 530×350×250 mm | 8.656 Kgs |
