Product Details:
|
| BRAND: | TIANMA | MODEL NUMBER: | TM050RDZG03 |
|---|---|---|---|
| SIZE: | 5.0 Inch | RESOLUTION: | 800(RGB)×480 [WVGA] 188PPI |
| Viewing Angle: | 80/80/70/80 (Typ.)(CR≥10) | BRIGHTNESS: | 1000CD/M2 |
| TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C | SIGNAL LNTERFACE: | LVDS |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Info : | Panel Brand | Panel Model | TM050RDZG03-00 | |
|---|---|---|---|---|
| Diagonal Size | 5.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -40 ~ 90 °C |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.045×0.135 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.135×0.135 mm (H×V) [188PPI] | |
| Mechanical Size : | Display Area | 108×64.8 mm (H×V) | Bezel Area | 111.1×67.9 mm (H×V) |
| Outline Dim. | 120.7×77.8 mm (H×V) | Outline Depth | 5.7±0.2 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (4-Φ3.2) on left, right slugs | |||
| Other Features : | Weight | TBD | Surface | Antiglare |
| Basic Information : | Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 750:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 20/30 (Typ./Max.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.318; Wy:0.352 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6101K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 56% | sRGB | 76% coverage |
| Adobe RGB | 58% coverage | DCI-P3 | 58% coverage | |
| Rec.2020 | 42% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| D-IC Detail : | COG Built-in HX8664-B00APD400-LT + HX8264-D03DPD400-A-LTP |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3S6P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 9.3±0.6V (Typ.) | Current Input | 175mA (Typ.) | ||
| Consumption | 1.628W (Typ.) | |||||
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | |
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - | ||
| Consumption | 320mW (Typ.) | |||||

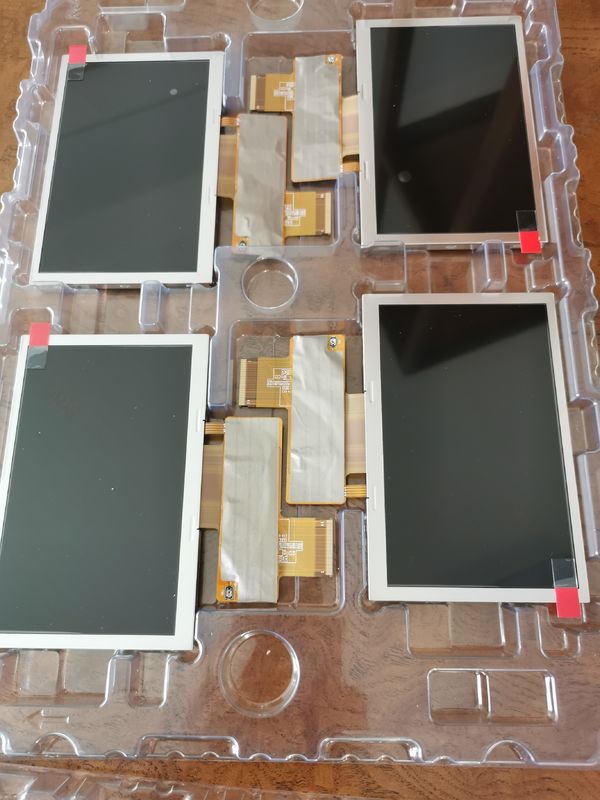

| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 40 pins | 1 pcs | ||||

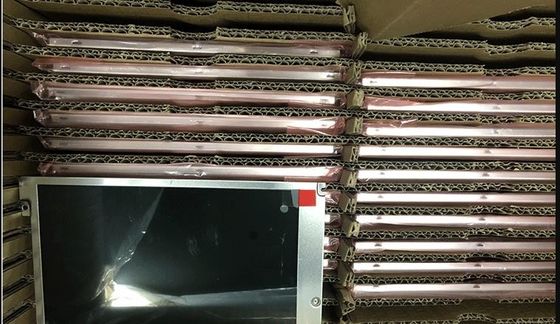

| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 72 | 1 | 395×290×315 | 8.84 | 0.0361 | |
| Pallet | 2304 | 32 | 1200×800×NA | N/A | N/A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 120.7(W)×77.8(H)×5.9(D) mm, viewing area size of 111.1(W)×67.9(H) mm, with surface treament of Antiglare, net weight of TBD. As a TN, Normally White, Transmissive LCM product, TM050RDZG03-00 can provides 1000 cd/m² display brightness 750:1 transimissive contrast ratio, 80/80/70/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20/30 (Typ./Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours. TM050RDZG03-00 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.).
