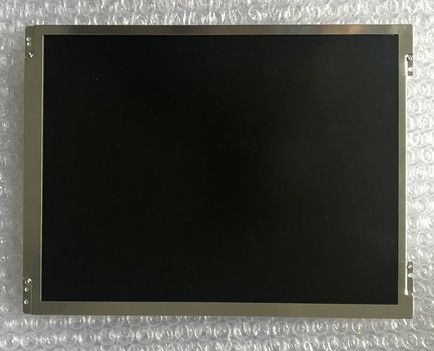

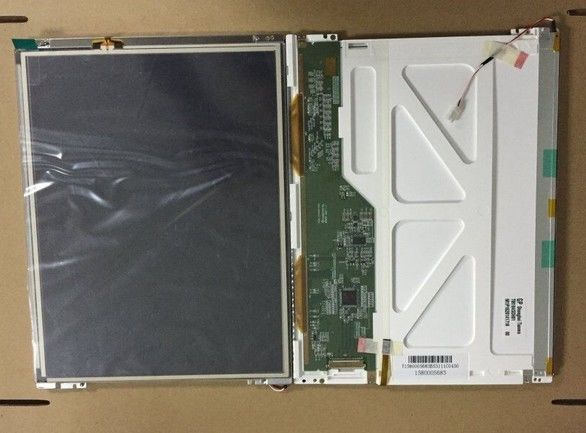

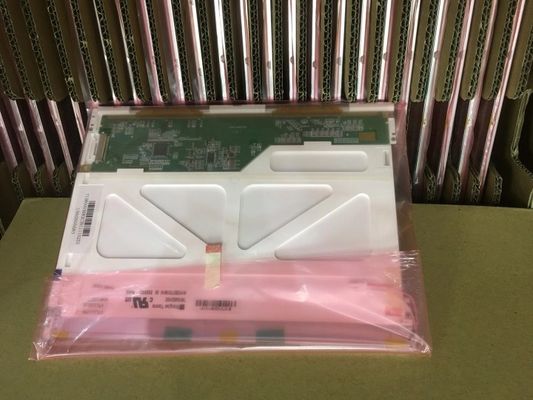

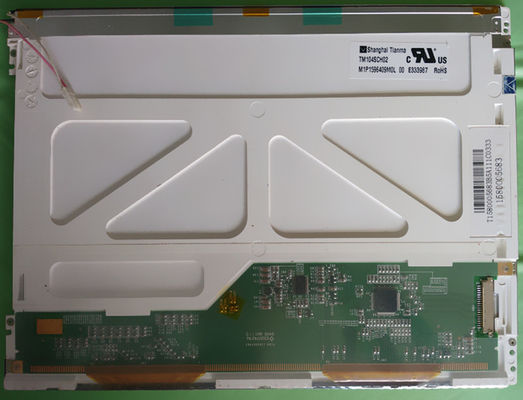

Product Details:
|
| MODEL NUMBER: | TM104SCH01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 800(RGB)×600 (SVGA) 96PPI |
| BRIGHTNESS: | 230 Cd/m² (Typ.) | Viewing Angle: | 65/65/45/65 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) | ||
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Information : | Brand Name | Model Name 1 Compatible | Type | Model Alias |
|---|---|---|---|---|
| TM104SCH01 | a-Si TFT-LCD , LCM | TS104SAATC01-00 | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | - | ||
| Application : | ||||
| Typical Features : |
|
|||
| Screen Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm | 215.0×162.0 mm | 236×176.9 mm | 5.60 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 283g (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Face mounting holes (4 pcs) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 230 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 65/65/45/65 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6584K | 262K (6-bit) | X:0.311; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 54% | 73% | 56% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 55% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Time Controller (T-CON) : | Need external T-CON |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | - | 1 pcs | - | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 520±52V | 3.0/5.5/7.0mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 40/60/80KHz (Min./Typ./Max.) | 890V (Max.) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/9.8/22.0/-7V (Typ.)(VCC/AVDD/VGH/VGL) | 11/50/0.3/0.51mA (Typ.)(ICC/IAVDD/IGH/IGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| TTL (1 ch, 6-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 2 pcs | 30 pins | 0.5 mm | ||||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 25 pcs / box | 11.5 Kgs | 530×350×250 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours
