TM043NDHG11 TIANMA 4.3" 480(RGB)×272 880 cd/m² INDUSTRIAL LCD DISPLAY

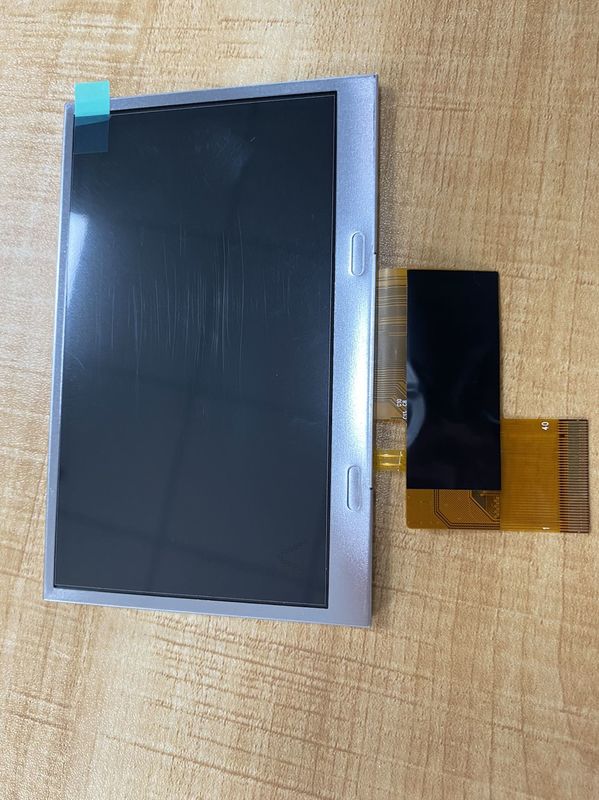

Large Image : TM043NDHG11 TIANMA 4.3" 480(RGB)×272 880 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM043NDHG11

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	300PCS

Contact Now

TM043NDHG11 TIANMA 4.3" 480(RGB)×272 880 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	TM043NDHG11	Viewing Angle:	70/70/60/70 (Typ.)(CR≥10)
TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C	SIGNAL LNTERFACE:	LVDS
Lamp Type:	WLED	BRIGHTNESS:	880 Cd/m² (Typ.)
RESOLUTION:	480(RGB)×272 [WQVGA] 128PPI	SIZE:	4.3INCH
BRAND:	TIANMA
High Light:	LVDS TFT LCD Display , CCFL Sharp TFT LCD Display

TIANMA TM043NDHG11 Mechanical Details

Pixel Features :	Resolution 480(RGB)×272, WQVGA Dot Pitch(mm) 0.066×0.198 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.198×0.198 (H×V) [128PPI]
Mechanical Size :	Active Area(mm) 95.04(H) × 53.856(V) Bezel Area(mm) 99.04(H) × 54.86(V) Outline Dim.(mm) 105.5(H) × 67.2(V) Depth(mm) 2.9±0.3
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 16:9 (H:V) Orientation Landscape type
Other Spec :	Weight TBD Treatment Antiglare, Hard coating (3H)

TIANMA TM043NDHG11 Application Details

Basic Information :	Brand Model TM043NDHG11 Type a-Si TFT-LCD , LCM Used For Screen Size 4.3 inch Alias -
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS Vibration -
Typical Features :

TIANMA TM043NDHG11 Optical Details

Basic Information :	Luminance(cd/m²) 880 (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive) Viewing Angle 70/70/60/70 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 6 o'clock Response(ms) 25 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.307; Wy:0.330 Display Colors 16.7M (8-bit) Color Temperature 6802K White Uniformity 1.25 (Typ.)(9 points)
1931 Color Gamlt :	NTSC Ratio 51% sRGB 71% coverage Adobe RGB 54% coverage DCI-P3 53% coverage Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility Sunlight Readable Transmissivity -

TIANMA TM043NDHG11 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	No
Driver IC :	COG Built-in ST8272T
Time Controller (T-CON) :	Embedded T-CON

TIANMA TM043NDHG11 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply TBD
Signal Type :	Parallel RGB (1 ch, 8-bit) Logic Voltage 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration 0.5 mm 40 pins 1 pcs

TIANMA TM043NDHG11 Backlight Details

Backlight Features :	Type WLED Quantity 8S2P Position Edge light type Replacement - Shape Array Life Time 20K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply 25.6V (Typ.) Current Supply 40mA (Typ.) Consumption 1.24W (Typ.)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	No

TIANMA TM043NDHG11 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	112 pcs / box	TBD	530×350×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours

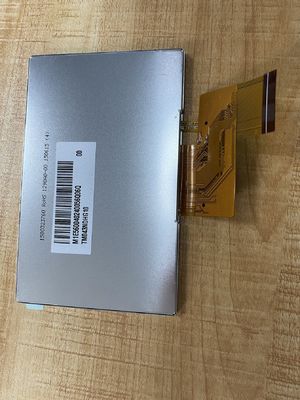

TM043NDHG11 TIANMA 4.3" 480(RGB)×272 880 cd/m² INDUSTRIAL LCD DISPLAY 3
